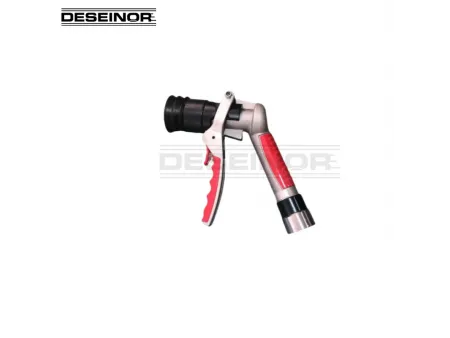

LPG Nozzle

Request a Quote

Original: http://tankerparts-en.com/2-6-8-lpg-nozzle.html

The DESEINOR LPG nozzle is a specialized refueling device designed for filling gas cylinders or vehicles. Different LPG applications require specific nozzle types, with proper coupling nozzle selection being particularly critical. The safety interlock prevents operation when improperly aligned. During disconnection, gas release is minimized and automatically diverted from the operator.

PG nozzles are exclusively designed for pumped dispensing systems and are incompatible with gravity-fed dispensing applications.

Key Features

Single-step operation for simplicity and ease of use

Ergonomic design

Durable construction for repeated connections

Excellent corrosion resistance

Integrated 360° swivel joint

Specifications

Model	GY-936
Inlet size	3/4” or 1”
Thread	NPT/BSPP
Max. working pressure	350psi
Temperature	40℃～85℃
Material	Brass, aluminum, steel (optional)
Connection	Italian-type coupling
LPG discharge on disconnect	4.33cc
External components	Brass/stainless steel
Internal components	Brass/steel
Packaging	10pcs/pack
