KCIV-388Vertical powder packaging machine
Request a Quote
This packing line combines a vertical form fill and seal machine (VFFS), auger filling device, screw conveyor, and weighing scale to carry out packaging of powdered products such as milk powder and laundry detergent. The weighing scale is available as a multi-head weighing scale or vibratory net weighing scale according to customer requirements.
Vertical powder automatic packing machine
Samples
Bag types

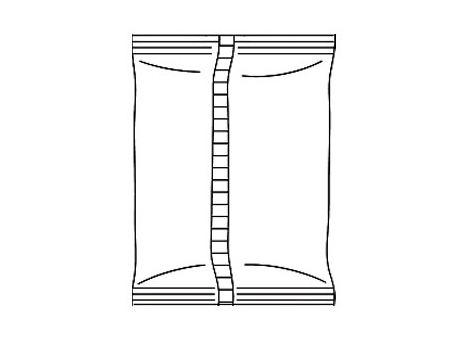

- Pillow bag

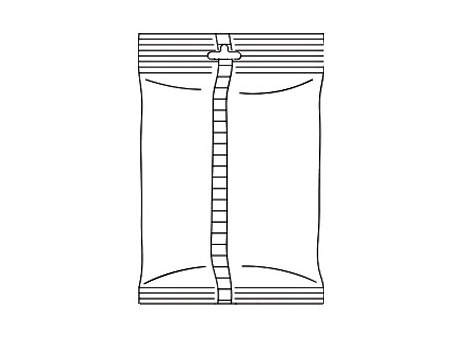

- Pillow bag with euro hole
- Pillow bag with round hole

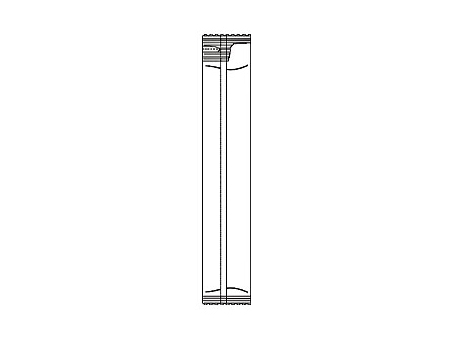

- Stick seal bag

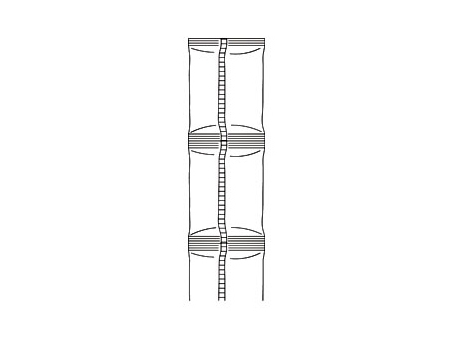

- Linking bag
- 3 side sealed bag
- 4 side sealed bag

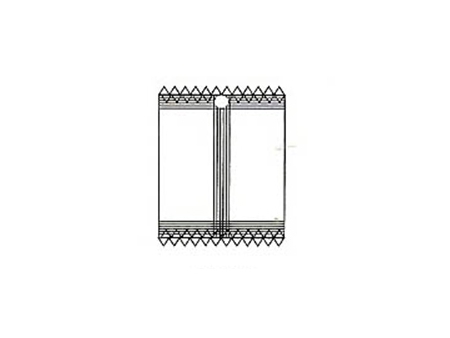

- Gusset bag
- Triangle bag
Specification
| Model | JAIV-4240D | JAIV-5240D | JAIV-7240D |
| Transverse Sealing | Netted Line/Straight Line(optional) | ||
| Bag Pulling | Stepping Motor Bag Pulling | ||
| Measuring Range | 150-1500ML | 2000ML | 4000ML |
| Bag Length | 80-300MM | 80-350MM | 100-500MM |
| Bag Width | 60-200MM | 100-250MM | 180-350MM |
| Packing Speed | 10-60bag/min | 10-60bag/min | 5-55bag/min |
| Film Width | Max.420MM | Max.520MM | Max.720MM |
| Film Roll Diameter | Max.320MM | Max.320MM | Max.320MM |
| Power | 220V 50/60HZ 2KW | 220V 50/60HZ 3KW | 220V 50/60HZ 3KW |
| Machine Size(L*W*H) | 1217*1015*1343MM | 1488*1080*1490MM | 1780*1350*2050MM |
| Machine Weight | About 650kg | About 680kg | About 750kg |
