Premade Pouch Powder Packaging Machine
Request a Quote
Premade Pouch Filling & Sealing Machines
Vertical Form Fill Seal Machines for Powdery Products
- Stations
- 8
- Bags Per Hour
- 1800-3300
- Bag Length
- Up to 450mm
- Bag Width
- 220-350mm

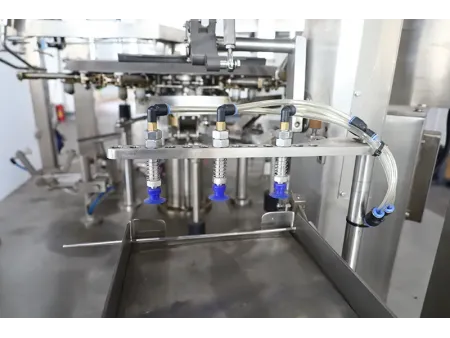

Suction cup system
Machine main body
Dosing system
Sealing system
Premade Pouch Powder Packaging Machine Introduction
Applications
Perfect for packaging items like milk powder, monosodium glutamate, seasonings, laundry detergent, glucose, chemical raw materials, and granulated sugar.
Configurations
- Date Coding Machine
- PLC Control System
- Bag Opening Device
- Vibration Device
- Pneumatic Cylinder
- Solenoid Valve
- Temperature Control
- Vacuum Pump
- Frequency Converter
- Conveying System
Features
- Quick Bag Specification Adjustment: Effortlessly switch bag sizes with one-touch automatic width adjustment.
- Efficient and Reliable Design: Single-shaft transmission with an internal cam ensures high-speed operation, stable performance, simple maintenance, and reduced defective rates.
- Precise Temperature Control: Modular heating system delivers accurate temperature management, with built-in alarms for heating failures.
- User-Friendly Operation: PLC POD (touchscreen) electrical control system offers an intuitive interface for ease of use.
- Wide Packaging Range: Suitable for various materials, including liquids, pastes, granules, powders, and solids, with easy adaptability using appropriate dosing devices for different material types.
Our powder pre-made pouch packaging machine is tailored to handle pouches with widths from 220 to 350mm and lengths up to 450mm, ensuring compatibility with your packaging needs. Operating at a speed of 30–55 pouches per minute, this machine allows you to adjust the feeder speed to match your specific production demands, helping you maintain an efficient and smooth workflow.
Kinds of Pouches: 3-side, four edge-sealing bag, self-reliance bag, handbag, spout bags, zipper bag, compound bag, etc
| Model | |
| Number of Stations | 8 stations |
| Working Process | Bag Feeding → Date Coding → Zipper Bag Opening (depending on actual needs) → Bag Opening → Pouch Filling → Heat Sealing 1 →Heat Sealing 2 |
| Bag Type | Pre-made Pouches |
| Bag Length | Max.450mm |
| Bag Width | 220-350mm |
| Packaging Speed | 1800-3300bags/hour (depending on feeding speed) |
| Total Power | 7kW |
| Machine Weight | 1.8t |
| Machine Dimensions (L×W×H) | 1620×1840×1700mm |
| Compressed Air Consumption | 1.2m³/min (compressed air is supplied by user) |
