CNC Tube End Closer
Request a Quote
View All: http://oms-equipment.com
Machine drawing of the CNC tube end closer
This machine is used to process copper tube ends by sealing them. It is mainly applied in air-conditionign tubing production.

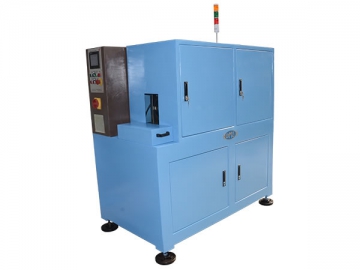

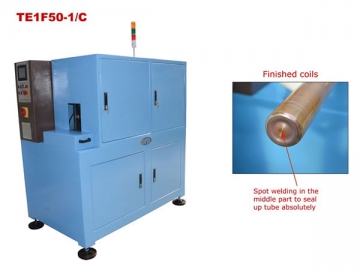

- CNC tube end closer

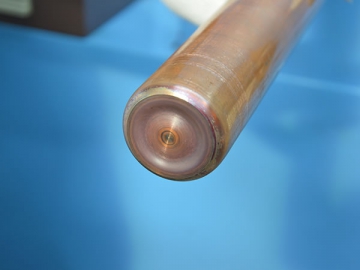

- Spot welding in the middle to completely seal the tubing

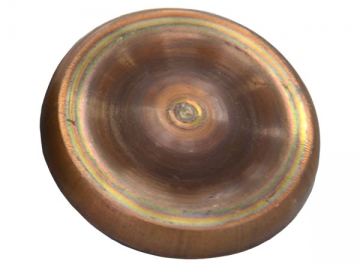

- Work piece

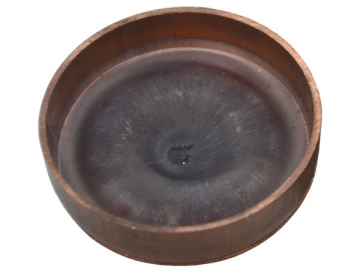

- Work piece
| Main technical parameters TE1F50-1/C | |||||
| 1 | Process material | Copper tube | 8 | Electric control type | PLC control |
| 2 | Max process tube size | φ50 | 9 | Tube-loading and unloading type | By hand |
| 3 | Max process tube length | 2000mm | 10 | Overall size | 2200*1000*1600mm |
| 4 | Min process tube length | 200mm | 11 | Efficiency | 25 seconds/ tube size35mm |
| 5 | Tube end closing shape | flat shape | 12 | Total power | ≤8KW |
| 6 | Knife-penetrating control | Servo motor with high precision | 13 | Power supply | 3 phase 4 lines/ 380v 50hz |
| 7 | Clamp power | Pneumatic power | |||
