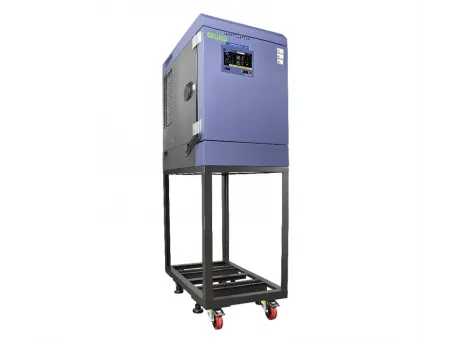

MINI Series High/Low Temperature & Humidity Test Chamber

Request a Quote

Website: http://testchamber-en.com/2-6-high-low-temperature-humidity-test-chamber.html

Environmental simulation chamber for testing materials by simulating conditions at desired temperature and humidity levels

These compact benchtop chambers are designed for environments where space is limited but reliable climate testing is essential. They help evaluate how materials and components perform when exposed to controlled heat, cold, and humidity over time.

Typical Test Applications

High-temperature exposure
Low-temperature assessments
Constant temperature and humidity testing
Alternating temperature cycles
Combined temperature and humidity simulations

Our temperature and humidity test chamber models comply with the following standards:

EN IEC 61000-6-2:2019
EN IEC 61000-6-4:2019
EN 61010-1:2010 A1:2019
ASINZS 61000.6.4:2012

Standard Configuration

2 cable ports (Ø50 mm), one on each side, supplied with grey flexible rubber plugs and covers
2 sets of specimen racks
1 sample power control terminal
1 RS-485 communication port
1 RJ-45 Ethernet port
USB port
Hour meter

Technical Parameters

Model		MW3030	MT3065
Chamber volume (L)		30
Performance	Temperature range	-40℃～ 150℃	-70℃～ 150℃
	Humidity range	(25～98)%RH/(20～85) ℃	——
	Temperature fluctuation	1℃
	Temperature deviation	±2.0℃ (temperature≤100℃) ±3.0℃ (temperature>100℃)
	Humidity deviation	±3.0% RH(>75%RH); ±5.0% RH(≤75%RH)	——
	Temperature rise rate	-30℃→ 150℃	-65℃→ 150℃
		≤35min	≤40min
	Temperature drop rate	20℃→-25℃	20℃→-60℃
		≤30min	≤50min
Internal dimensions (mm)		W300×H400×D250
External dimensions (without protrusion) (mm)		W500×H850×D875
Power supply		220V (single phase protective grounding wire)
Condensing method		Air-cooled

Performance values are based on an ambient temperature of 25 °C and relative humidity up to 85%, measured with the chamber empty.
