Multi-wire Drawing Machine
Request a Quote
View All: http://shcablemachinery.com
Usage

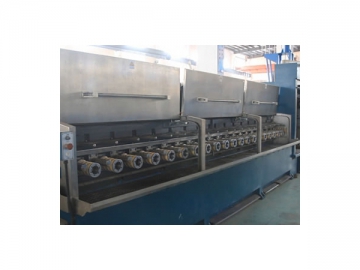

Our multi-wire drawing machine was designed to greatly increase production capacity compared to standard drawing equipment. The drawing line can draw up to 8 copper wires simultaneously. This efficiency increase is invaluable to high capacity wire producers.
| Inlet diameter | φ 2.0-φ 2.6 mm |
| Outlet diameter | Φ 0.15-Φ 0.70 mm |
| Number of produced wires | 8 x copper bare i.e. copper tinned(1 Levels, with 8 wires) |
| Drawing speed | Max. 28 m/s |
| Drawing passes | Max. 22 |

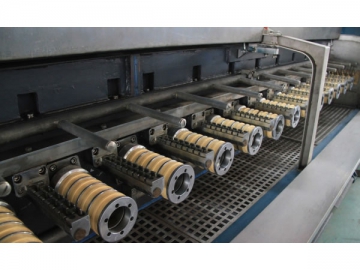

| Drawing rings | 100mm with 8 grooves, For separate and parallel wire guidance Material: tungsten carbide or zirconium oxide |
| Wire elongation | 11 x 25% / 5 x 19.44 % /3 x 9.04% Adjustable and quick die change |
| Drawing dies | φ max. 28mm alternatively φ = max. 25.4 mm max. 12 mm thickness |
| Compressed air supply | 6 bar overpressure (7 x 105 Pa), water- and oil free |
| Bobbin | DIN 630 ( Drawing will be provided by users) |
| Operation direction | from left to right |
| Noise level | < 85 dbA (Except for main motor) |
| Production efficiency | 8 x φ 0.150mm at v = 28.0m/s 8 x φ 0.203 mm at v = 25.0m/s 8 x φ 0.250 mm at v = 23.0m/s 8 x φ 0.300 mm at v = 15.0m/s 8 x φ 0.400mm at v = 12.0m/s Production efficiency for tinned wires at production speeds reduced by about 20% |
