Welding Consumables
Titanium alloy filler metal for welding titanium base metals of similar composition in applications requiring excellent weldability and high corrosion resistance
- Chemical Designation: Ti-0.2Pd
- Standard: AWS A5.16
ERTi-7 (Titanium Grade 7) Titanium Welding Wire
Request a Quote
Chemical Composition (%)
| Fe | O | C | N | H | Pd |
| ≤0.12 | 0.08-0.16 | ≤0.03 | ≤0.015 | ≤0.008 | 0.12-0.25 |
Features
- ERTi-7 performs exceptionally well in highly corrosive environments, including strong acids, alkalines, and high salt concentrations, offering effective protection against corrosion. This helps extend the lifetime of equipment and reduces maintenance costs.
- This alloy demonstrates outstanding stability at elevated temperatures, withstanding high temperatures up to several hundred degrees Celsius or even higher, without significant degradation in performance.
- ERTi-7 provides excellent machinability and weldability, allowing for precise processing and construction of complex structures, thereby enhancing material efficiency.
Applications
ERTi-7 is widely used in welding mechanical equipment, especially in environments that demand high corrosion resistance and high-temperature performance. It is particularly suitable for industries such as:
- Chemical industry: Ideal for welding components exposed to corrosive substances
- Petroleum industry: Used in the production of equipment for handling aggressive environments

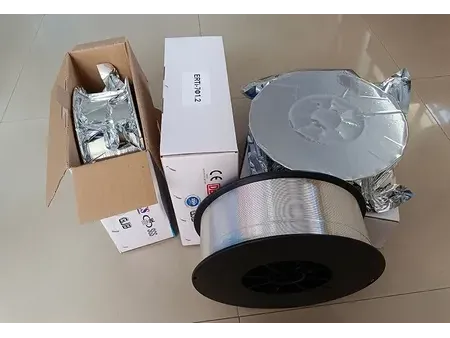

Packaging
- Welding wire diameter (fine wire spooling): 0.8mm, 1.0mm, 1.2mm, 1.6mm
- Package: D300mm (10kg/spool), D100mm (0.8kg/spool)

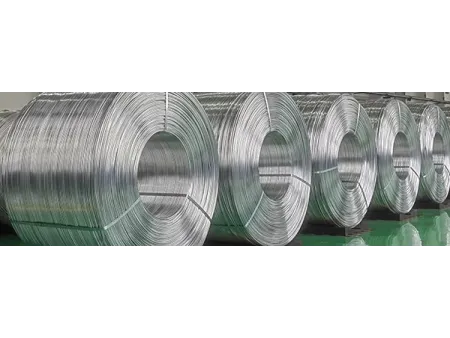

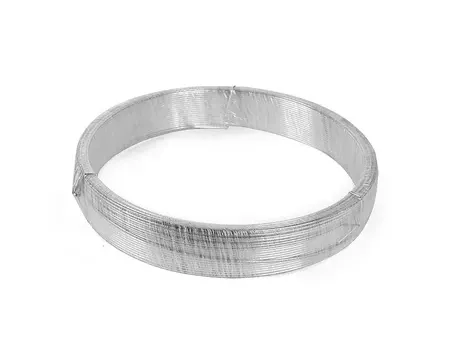

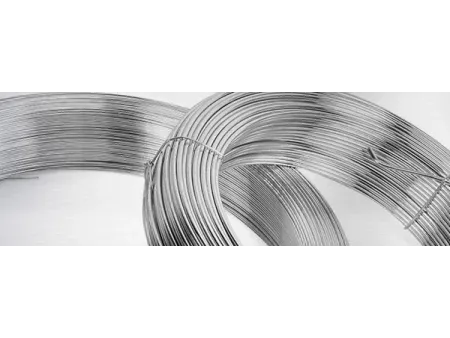

- Welding wire diameter (coil without spool): 1.2mm, 1.6mm, 2.0mm, 2.4mm, 3.0mm, 4.0mm, 5.0mm
- Coil inner diameter: D450mm, D300mm
- Package: 10-17kg/coil

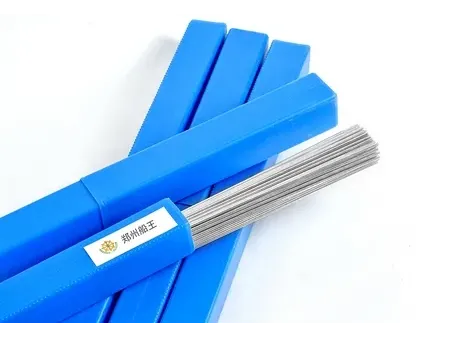

- Welding wire diameter (straight wire): 1.2mm, 1.6mm, 2.0mm, 2.4mm, 3.0mm, 4.0mm, 5.0mm, 6.0mm
- Package: 1000mm length (5kg/plastic box)
