Welding Consumables
Titanium alloy filler metal for welding titanium alloys in applications requiring better ductility, formability and weldability
- Chemical Designation: Ti-3Al-2.5V
- Standard: AWS A5.16
ERTi-9 (Titanium Grade 9) Titanium Welding Wire
Request a Quote
Chemical Composition (%)
| Fe | O | C | N | H | Al | V |
| ≤0.20 | 0.06-0.12 | ≤0.03 | ≤0.012 | ≤0.005 | 2.5-3.5 | 2.0-3.0 |
Features
- ERTi-9 offers superior strength, capable of withstanding significant external forces.
- This alloy maintains performance stability in high-temperature environments, ensuring reliable functionality.
- ERTi-9 performs excellently in a variety of corrosive environments, making it suitable for challenging applications.
- under low temperatures, ERTi-9 retains its mechanical properties, making it suitable for cold environment applications.
Applications
ERTi-9 is widely used in welding applications that require high strength, heat resistance, corrosion resistance, and low-temperature performance.
Packaging

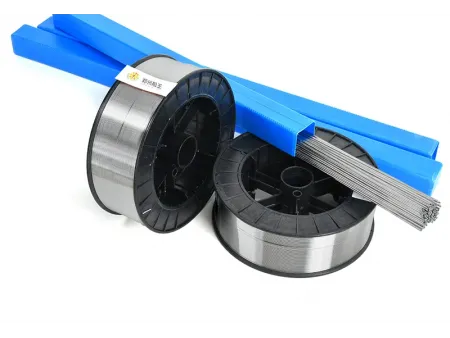

- Welding wire diameter (fine wire spooling): 0.8mm, 1.0mm, 1.2mm, 1.6mm

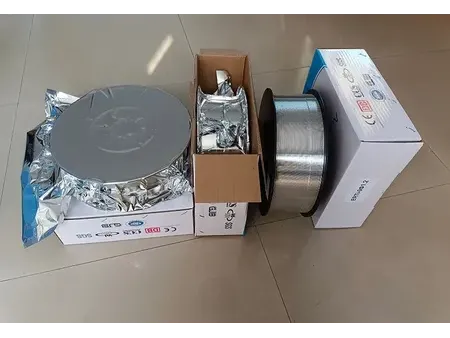

- Package: D300mm (10kg/spool), D100mm (0.8kg/spool)

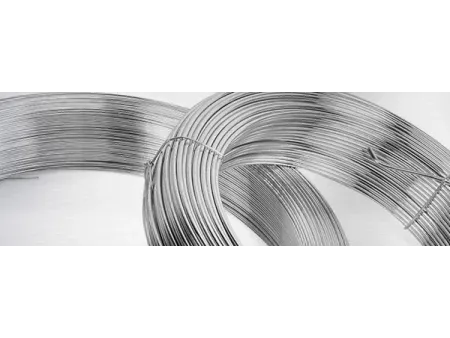

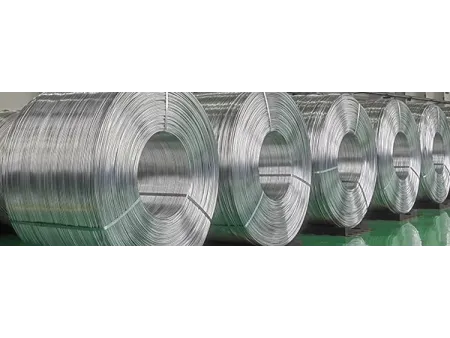

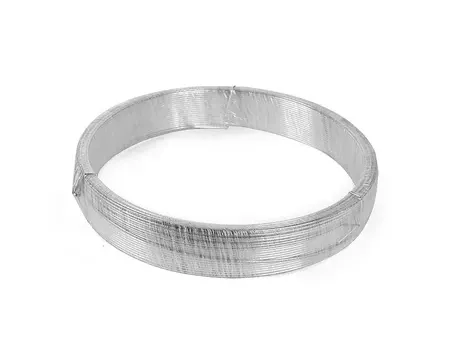

- Welding wire diameter (coil without spool): 1.2mm, 1.6mm, 2.0mm, 2.4mm, 3.0mm, 4.0mm, 5.0mm
- Coil inner diameter: D450mm, D300mm
- Package: 10-17kg/coil

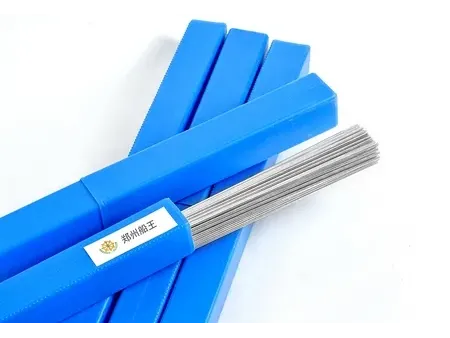

- Welding wire diameter (straight wire): 1.2mm, 1.6mm, 2.0mm, 2.4mm, 3.0mm, 4.0mm, 5.0mm, 6.0mm
- Package: 1000mm length (5kg/plastic box)
