Grade 5 Titanium 6AL-4V Alpha-beta titanium alloy
Request a Quote
Features
- Grade 5 Titanium 6AL-4V it is one of the most popular alloys in the titanium industry
- It has excellent strength, low modulus of elasticity, high corrosion resistance, good weldability, and it is heat treatable
Chemical Analysis
| % | C | N | H | O | Fe | Ti | Al | V |
| Min | - | - | - | - | - | Balance | 5.5 | 3.5 |
| Max | 0.08 | 0.05 | 0.125 | 0.2 | 0.4 | Balance | 6.75 | 4.5 |
Product Form
- Round bar
- Sheet & plate

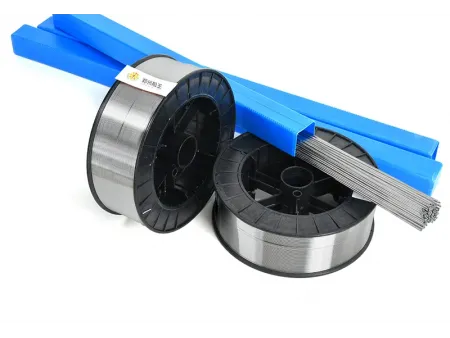

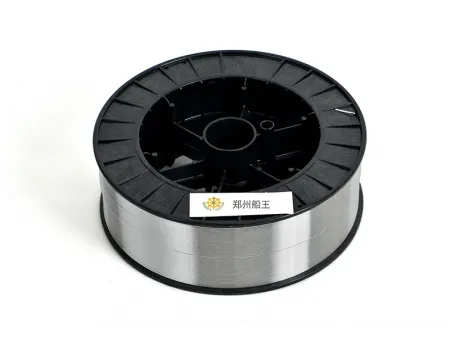

- Welding Wire
Physical Properties
| Density | Mean Coefficient of Thermal Expansion | Thermal Conductivity | Modulus of Elasticity | Melting Point |
| 4.43 g/cm³ | 70- 212°F (20- 100°C): 4.78 x 10 (8.6) | BTU-in/h-ft-°F (W/m-°K): At 70°F (21°C): 46.5 (6.7) | KSI (MPa) 16.5 x 10³ (113.8 x 10³) in tension | 1660°C |
- Applications
- Compressor discs and blades
- Aircraft structural components
- Fitness Equipment
- Pumps and valves
