Profiling station used in concrete block production line to cut tongues and grooves

The tongue and groove milling machine is used to form tongues and grooves on the sides of wall panels. It offers high precision and smooth, flat surfaces for the tongues and grooves. It can be used for wall panels of different thicknesses and is commonly used for lightweight concrete blocks and wall panels.

Single Concrete Panel Edge Milling Machine

The single concrete panel edge milling machine is used to cut tongues and grooves on both sides of a partition wall panel, processing one panel at a time.

Specifications

  • Model: HDKC-001
  • Power: 17.5kW
  • Speed: 6-10m³/h (depending on concrete strength)
  • Concrete panel thickness: 100-200mm (special thickness can be customized)

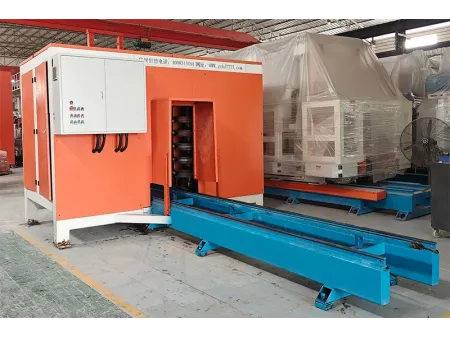

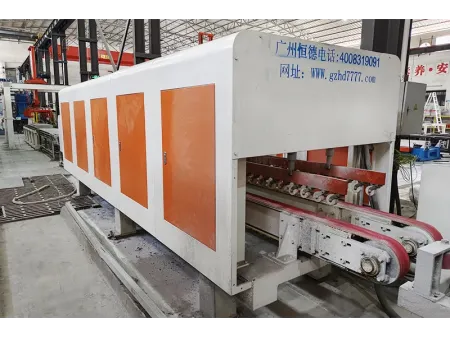

Multiple Concrete Panel Edge Milling Machine

The multiple concrete panel edge milling machine is used to cut tongues and grooves on both sides of partition wall panels, processing 8-10 concrete panels at a time.

Specifications

  • Model: HDKC-002
  • Power: 33kW
  • Speed: 20m³/h (depending on concrete strength)
  • Concrete panel thickness: 100-200mm (special thickness can be customized)
