Feeding & Preparation System for Lightweight Concrete Raw Materials
A section combining raw materials feeding, dosing, mixing and pouring for concrete block production

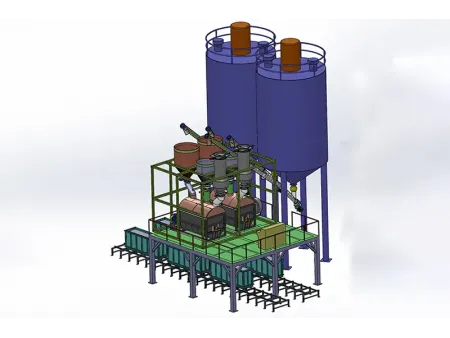

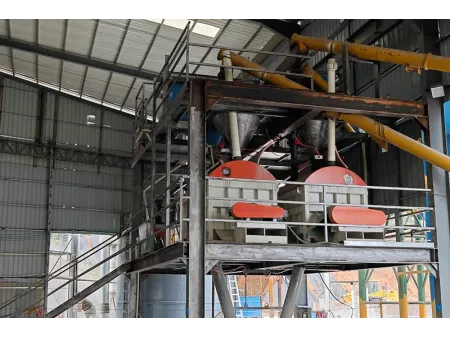

The aggregates mixing and dosing station includes a screw conveyor, belt conveyor, dosing system, foam generator, and concrete mixer. This station completes the processes of automatic conveying, dosing, mixing, and pouring of cement and admixtures.
The screw conveyor, also known as an auger conveyor, is a machine that uses the principle of screw rotation to transport materials from one place to another.
Specifications
- Model: HDSL-001
- Diameter: 219mm
- Length: 6000mm
- Power: 5.5kW
Applications
The screw conveyor is easy to operate and maintain, with high conveying efficiency. It is suitable for transporting various powdered materials. In the cement and building materials industry, it is used for conveying cement, fly ash, and other admixtures.
A continuous material handling system, also known as a belt conveyor, consists of a frame, belt, rollers, and tensioning drive device. The conveying distance can be adjusted, and it can be operated programmatically.
Specifications
- Model: HDPD-001
- Length: 9000mm
- Power: 2.2kW
The powder dosing and weighing system is designed for precise measurement of powdered materials, including cement, fly ash, and sand. This system ensures high dosing accuracy and is easy to operate, making it an essential component for achieving consistent and high-quality mixtures in the cement and building materials industry.
Specifications
- Model: HDFL-001
- Dimensions: 1200×1500×1400mm
- Power: 0.55kW
The foam generator dilutes liquid foaming agent with water in a specific ratio and then processes it through a specialized device to create liquid foam. This foam is conveyed into the concrete mixer, facilitating the production of foamed concrete.
Specifications
- Model: HDWF-001
- Dimensions: 1100×700×1000mm
- Power: 10kW
- Output: 60m³/h (can cast 60m³ of foam concrete per hour)
Features
- Stable performance, energy-efficient, durable, and available in customizable sizes.
- Automatic flow control: starts and stops automatically upon reaching preset flow parameters.
- Generates foam bubble membrane for high-quality foamed concrete
Applications
The foam generator is commonly used for on-site foamed concrete construction for walls and roofs, as well as for the production of lightweight wall panels.
The high-power vertical shaft mixer is used for mixing materials such as cement, fly ash, sand, and water in a single operation.
Specifications
- Dimensions: 2500×1550mm
- Power: 15kw
- Capacity: 28m³/h
Features
- High efficiency: The vertical shaft mixer can complete the mixing process within 3 minutes.
- Good uniformity: The vertical mixing blades ensure the materials are evenly mixed.
The horizontal shaft mixer is used for mixing cement, sand, fly ash, and tailings. It quickly and uniformly mixes materials with polystyrene particles and foaming agent, reducing foam loss.
Specifications
- Model: EPSJB-001
- Dimensions: 1800×1200×1200mm
- Power: 11kW
- Capacity: 28m³/h
The high-speed horizontal shaft mixer is used for mixing cement, sand, fly ash, and tailings. It efficiently and uniformly mixes materials with polystyrene particles and foaming agent, reducing foam loss. This mixer is suitable for large-capacity production lines.
Specifications
- Model: EPSJB-002
- Dimensions: 2600×1700×1600mm
- Power: 15.6kW
- Capacity: 60m³/h
