Single-Head Gantry Vertical Concrete Cutter with Rotary Table

Single-Head Gantry Vertical Concrete Cutter with Rotary Table
Single-Head Gantry Vertical Concrete Cutter with Rotary Table
Single-Head Gantry Vertical Concrete Cutter with Rotary Table
Single-Head Gantry Vertical Concrete Cutter with Rotary Table
Request a Quote

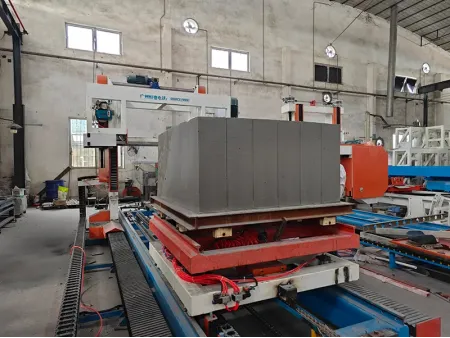

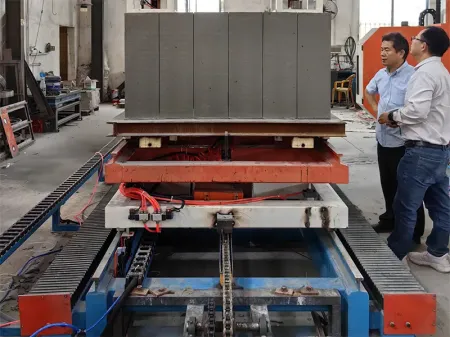

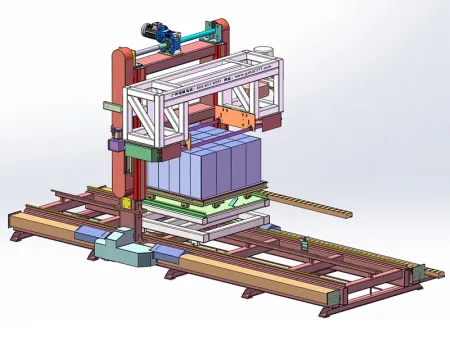

The single-head gantry vertical concrete cutter with rotary table (vertical gantry sawing machine) is designed to cut one concrete cake at a time. The dimensions of the concrete cake are 1.2m in length, 1.2m in width, and 0.6m in height, with a single cutting volume of 0.86m³. The mould bottom plate is equipped with a 90-degree rotation device, and a single cutting machine is used to complete the concrete cake cutting.

Specifications
  • Model: HDFMSQ-001B
  • Dimensions: 6000×3000×2900mm
  • Power: 13.5kW
  • Flywheel diameter: 600mm
  • Cutting speed: 5m³/h

Note: It can cut any size within 600mm, with common product widths (thicknesses) of 100mm, 120mm, 150mm, 200mm, 240mm, 300mm, and 350mm.

Features
  • Dual cutting capability: one saw completes both horizontal and vertical cuts, reducing investment costs.
  • Easy size adjustment: fully PLC-controlled, input the required cutting dimensions (any size within 600mm), and the cutting task is completed automatically, making factory management easier.
  • Precise and aesthetic cuts: cutting size error is less than 1mm. The entire cutting process is controlled online by a computer (the concrete cake does not leave the bottom plate), ensuring high precision and a smooth, aesthetically pleasing surface.
  • Labor-saving: one person can complete the cutting process.
  • Easy saw blade replacement: saw blades can be changed in 1-2 minutes.
  • Low cutting loss costs: the saw head cuts vertically downwards without negative pressure, reducing friction on the saw blade, making it more durable and saving production costs.
  • Superior performance: it can cut semi-dry wet concrete cakes (0.5-2MPA) and hardened concrete cakes (3.5-5MPA).
  • Multi-functional: it can cut non-autoclaved aerated concrete (NAAC) blocks, EPS concrete blocks, and lightweight aggregate blocks such as ceramist or perlite blocks.
