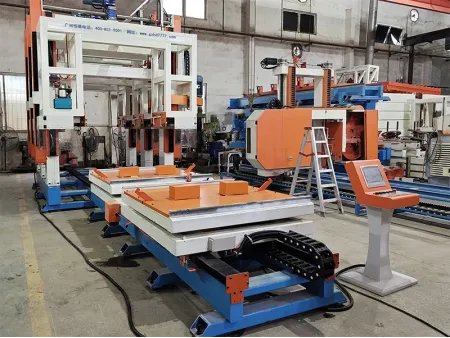

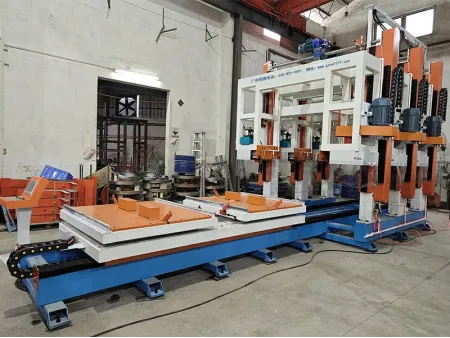

Three-Head Gantry Vertical Concrete Cutter with Rotary Table

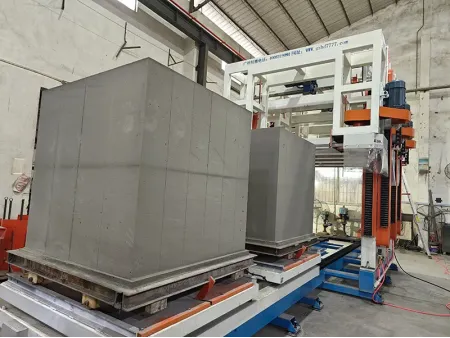

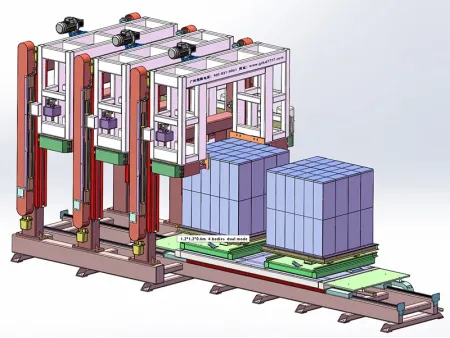

The three-head gantry vertical concrete cutter with rotary table (vertical gantry sawing machine) is designed to cut two concrete cakes at a time. The dimensions of each concrete cake are 1.2m in length, 1.2m in width, and 1.2m in height, with a single cutting volume of 3.44m³. The mould bottom plate is equipped with a 90-degree rotation device, and a single cutting machine is used to complete the concrete cake cutting (Note: without the rotation, two saws are required to complete the cutting). It is used for cutting concrete cakes in 1.2m high square moulds (this machine is also suitable for cutting 0.6m high moulds).
- Model: HDSMPQ-002
- Dimensions: 6000×3000×2900mm
- Power: 26kW
- Flywheel diameter: 600mm
- Cutting speed: 20-24m³/h
Note: It is capable of cutting any size within 600mm. Common product widths (thicknesses) include 100mm, 120mm, 150mm, 200mm, 240mm, 300mm, 350mm, etc.
- Large capacity: renowned for its exceptional capacity, capable of handling up to 3.44 cubic meters in a single operation. This significantly reduces production time and enhances operational efficiency.
- Horizontal and vertical cuts: one saw completes both horizontal and vertical cuts, reducing investment costs.
- Easy size adjustment: fully PLC-controlled, input the required cutting dimensions (any size within 600mm), and the cutting task is completed automatically, making factory management easier.
- Precision and aesthetic dimension: cutting size error is less than 1mm. The entire cutting process is controlled online by a computer (the concrete cake does not leave the bottom plate), ensuring high precision and a smooth, aesthetically pleasing surface.
- Labor-saving: requires only one operator to complete the cutting process.
- Easy saw blade replacement: Saw blades can be changed in 1-2 minutes.
- Low cutting loss costs: the saw head cuts vertically downwards without negative pressure, reducing friction on the saw blade, making it more durable and saving production costs.
- Superior performance: it can cut semi-dry and wet concrete (0.5-2MPA) and hardened concrete (3.5-5MPA), ensuring precise, high-quality cuts for various applications.
- Multi-functional: it can cut non-autoclaved aerated concrete (NAAC) blocks, EPS concrete blocks, and lightweight aggregate blocks such as ceramist or perlite blocks.
