Three-Head Gantry Vertical Concrete Cutter Manufacturer

Three-Head Gantry Vertical Concrete Cutter

Request a Quote

View All: http://wallpanel-machines.com/2-7-7-cutting-line.html

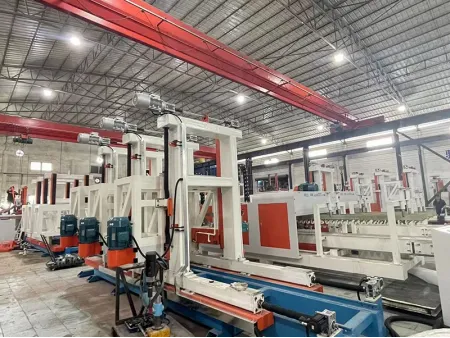

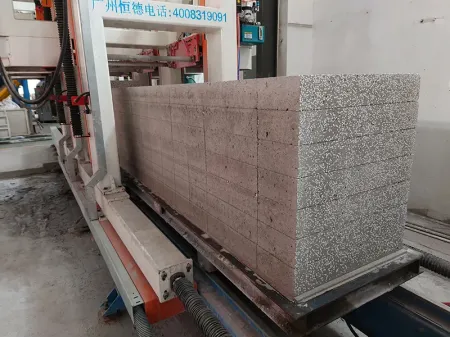

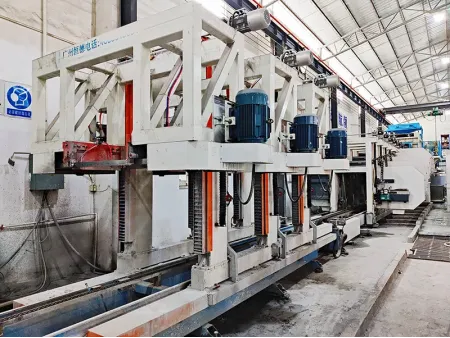

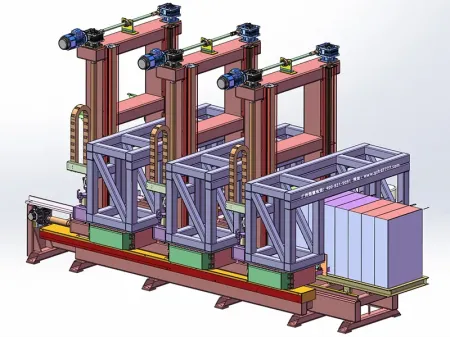

The three-head gantry vertical concrete cutter is designed for vertical cutting of concrete cakes. It is equipped with three saw blades and can cut concrete cakes with the following dimensions:
3.0m x 0.9m x 0.6m, 3.4m x 0.9m x 0.6m

The single cutting volume ranges from 1.6 to 1.8m³. This cutter is used in conjunction with horizontal cutting saws to complete the cutting process (it can be combined with single-track, five-track, seven-track, or nine-track gantry horizontal saws).

Specifications

Model: HDSQ-003
Dimensions: 6000×2500×3100mm
Power: 26kW
Flywheel diameter: 600mm
Cutting speed: 16-18m³/h
Cutting width: 100mm, 120mm, 150mm, 200mm, 300mm

Features

Easy size adjustment: fully PLC-controlled, input the required cutting dimensions (any size within 600mm), and the cutting task is completed automatically, making factory management easier.

Precise and beautiful dimensions: cutting size error is less than 1mm. The entire cutting process is controlled online by a computer (the concrete cake does not leave the bottom plate), ensuring high precision and a smooth, aesthetically pleasing surface.

Labor-saving: one person can complete the cutting process.

Easy saw blade replacement: saw blades can be changed in 1-2 minutes.

Low cutting loss costs: the saw head cuts vertically downwards without negative pressure, reducing friction on the saw blade, making it more durable and saving production costs.

Superior performance: it can cut semi-dry wet concrete cakes (0.5-2MPA) and hardened concrete cakes (3.5-5MPA).

Multi-functional: it can cut non-autoclaved aerated concrete (NAAC) blocks, EPS concrete blocks, and lightweight aggregate blocks and wall panels such as ceramist or perlite blocks.
