Five-Head Gantry Horizontal Concrete Cutter

Request a Quote

View All: http://wallpanel-machines.com/2-7-9-cutting-line.html

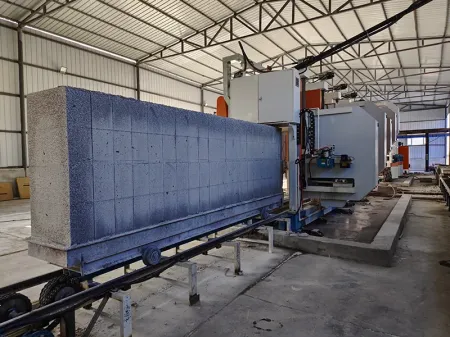

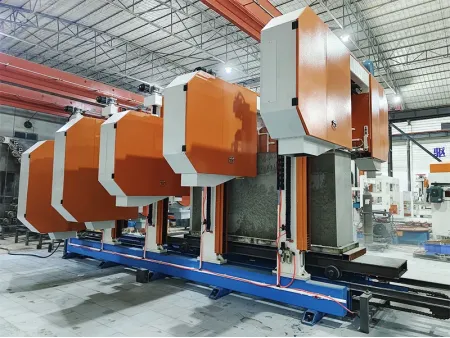

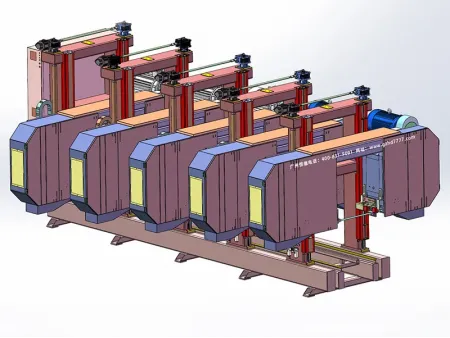

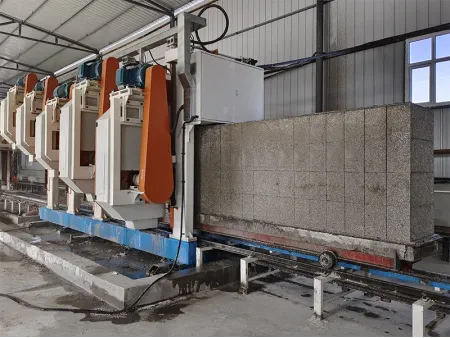

The five-head gantry horizontal concrete cutter is equipped with five saw blades for horizontal cutting of concrete cakes. The cutting height can be adjusted, and the dimensions of the concrete cakes are:
3.0m x 0.9m x 0.6m, 3.4m x 0.9m x 0.6m, 4.2m x 1.2m x 0.6m

The single cutting volume ranges from 1.6 to 3.0m³. This cutter can be combined with single-track, three-track, and four-track vertical cutting saws to cut concrete cakes. It can also be used independently for cutting wall panels.

Specifications

Model: HDPQ-003
Dimensions: 6000×3340×2950mm
Power: 90kW
Flywheel diameter: 900mm
Cutting speed: 20-30m³/h
Cutting height: 100mm, 150mm, 200mm, 240mm, 300mm, 350mm (or customizable)

Features

Easy size adjustment: fully PLC-controlled, input the required cutting dimensions (any size within 600mm), and the cutting task is completed automatically, making factory management easier.

Precise and beautiful dimensions: cutting size error is less than 1mm. The entire cutting process is controlled online by a computer (the concrete cake does not leave the bottom plate), ensuring high precision and a smooth, aesthetically pleasing surface.

Labor-saving: one person can complete the cutting process.

Easy saw blade replacement: saw blades can be changed in 1-2 minutes.

Low cutting loss costs: the saw head cuts vertically downwards without negative pressure, reducing friction on the saw blade, making it more durable and saving production costs.

Superior performance: it operates effectively with semi-dry and semi-wet concrete (0.5-2MPA) as well as hardened concrete (3.5-5MPA).

Multi-functional: it can cut non-autoclaved aerated concrete (NAAC) blocks, EPS concrete blocks, and lightweight aggregate blocks and wall panels such as ceramist or perlite blocks.
