5 Series of orbital motor available with displacement of 25-750ml/r

Orbital Motor

Orbital Motor

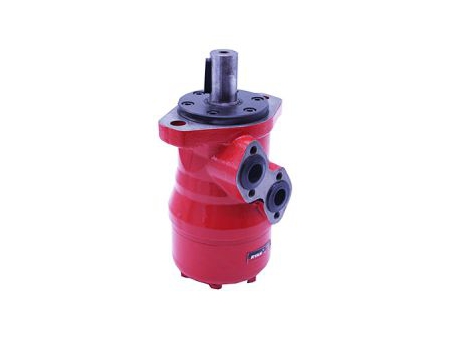

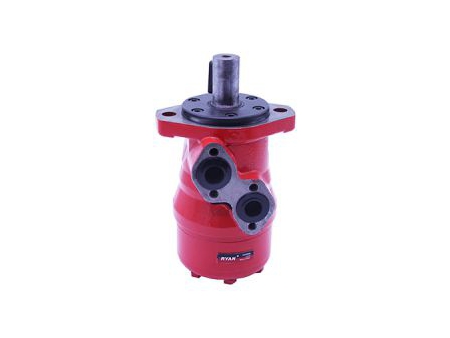

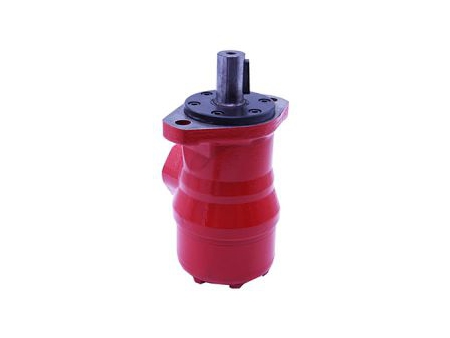

The GR series orbit motor is equipped with a spool valve and an integrated design with a distribution valve and output shaft. The universal shaft drives the distribution valve to transfer the mechanical energy from the gear to the output shaft. The valve has a hydrodynamic bearing, with a long service life within the maximum load. A roll-gearmotor set is also utilized.

Optional functions

  • Spool valve, roll-gerotor
  • Flange coupling
  • Motor with needle bearing
  • Side and bottom port
  • Shaft extension: straight, spline, tapered
  • Metric and BSPP port
  • Speed sensing
Applications
  • Conveying machinery
  • Robot and manipulator feeding machines
  • Metal working machines
  • Textile machines
  • Agricultural machinery
  • Food industry
  • Lawnmowers
Specifications
Max Displacement cm³/rev 397
Max Speed RPM 970
Max Torque Nm cont:610 int:690
Max output Kw 15
Max Pressure Drop MPa Cont:17.5 int: 20
Max Flow Ipm 75
Min Speed RPM 10
Pressure Fluid   DIN 51524 or ISO 6743/4
Fluid Temperature Range -40~140
Viscosity Range mm²/s 20~75
Filtration   ISO code 20/16

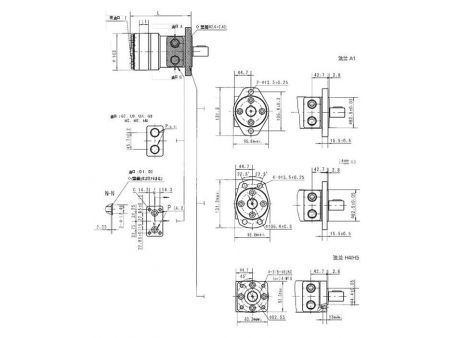

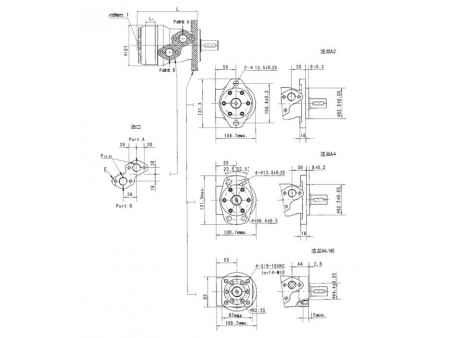

Dimensions
