Orbital Motor

Orbital Motor

The GGM series of orbital motors from GRH are high-speed, low-torque motors, offering an impressive combination of features:

  • They provide high performance and power density
  • Capable of reaching speeds up to 5000 rpm, they boast an extended service life
  • Manufactured in a constant-temperature, dust-free workshop, our orbital motors are built with high-precision components
Applications
  • Engineering machinery
  • Waste/Tipper trucks
  • Material handling equipment
  • Forestry machinery
  • Agricultural machinery
  • Industrial machinery
Specifications
Model GGM3.6 GGM6.1 GGM7.4 GGM9.5 GGM11.5
Displacement cm³/rev 3.57 6.094 7.374 9.5 11.471
Max. speed RPM 5000 5000 5000 5000 5000
Inlet flow L (1000 bar) 3.6 6.1 7.4 9.5 11.5
Max. inlet pressure bar Continuous 138 138 138 138 138
Intermittent 172.5 172.5 172.5 172.5 172.5
Output torque Nm /69bar* 4 7 8 10 12
Weight kg 1.25 1.36 1.41 1.5 1.59
Max. radial force N ** 755 578 490 310 132

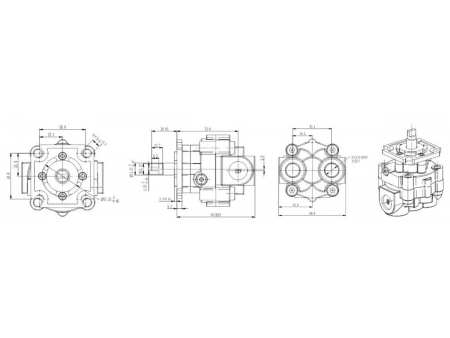

Dimensions
