Aluminum Alloy Multi-Axis Stage

Request a Quote

View All: http://optical-equipment.com/2-7-2-aluminum-alloy-multi-axis-stage.html

This product has been discontinued and removed from our shelves.

The aluminum alloy multi-axis stage is suitable to provide manual multi-axis displacement in the fields of scientific research, automatic measurement and test.

The displacement is driven by the micrometer head or differential micrometer head. The micrometer head is mounted in the center of the manual linear stage, which makes the operation convenient. The high precision small resolution micrometer head ensures the displacement can be adjusted at the nanometer level.

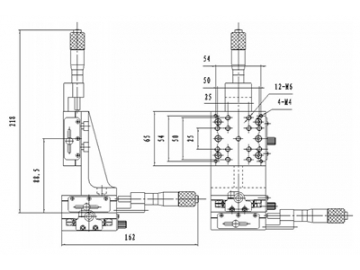

Specifications

Model

Function

Table size

Drive method

Drive position

Travel range

Smallest graduation

Precision

Minimum incremental motion

Load capacity

Straightness

Table parallelism

Driving parallelism

Weight

WN305ZM25M

X, Y, Z three dimensional adjustment

65mm×65mm

Micrometer head

Center drive

25mm

10μ/0.5μ

3μ/1.5μ

2μ/0.1μ

10kg

2μ

15μ

8μ

1.5kg

Features

The multi-axis stage is made of aluminum alloy with anodized surface.
Adopting high precision cross roller guide, the precison stage has high precision and is durable.
With high precision base and table, the manual stage has a high accuracy of straightness, yawing, pitching and parallelism.
Adpot spring reset to eliminate axial clearance.
The mounting holes are distributed on the base and table with standard hole spacing, which makes the precision stage convenient to do installation and combination.
The linear stage can be combined with other series of stages to form multi-axis positioning stage.
Linear scale can be added to display micro incremental movement.
