Multi-Axis Rate Table

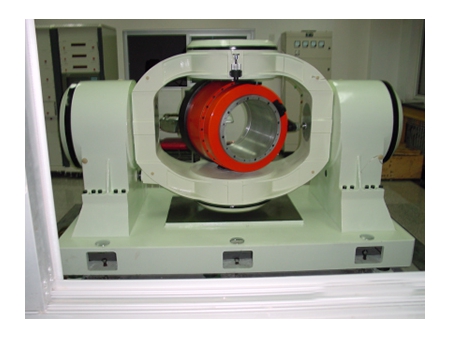

The multi-axis multifunctional turntable consists primarily of a mechanical turntable, a temperature control box, a measurement and control cabinet.
This mechanical turntable offers various functions including angular position, angular rate, swing, and centrifugal acceleration control. It can record and display real-time information data and also incorporates temperature control capabilities. The main purpose of the turntable is to provide precise positioning and speed reference for the load being measured. It can be used for both dynamic and static testing and calibration of inertial components and inertial navigation systems. Additionally, it can create high and low temperature, humidity, or vacuum test environments for the load being measured.
The axis of the turntable is a precision mechanical axis, featuring an interface that transmits the electrical signal from the device under test.
Furthermore, the rotary table is equipped with a standard interface for transmitting data information. Special measurement and control software can be utilized to control the operation of the rotary table and collect status data. Additionally, a communication protocol is available to enable users to control the rotary table and gather data through their own application programs.
The turntable finds extensive applications in aviation, aerospace, navigation, weapons, vehicles, and other fields. Its primary uses include the verification and calibration of inertial navigation systems and inertial components, as well as simulating missile and aircraft attitude movements. Depending on the intended use, the turntable can be categorized as an inertial test turntable, simulation turntable, or customized turntable.
| | | | |

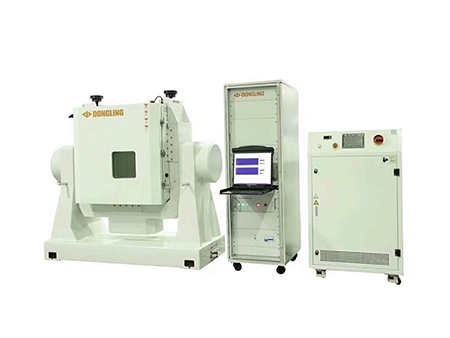

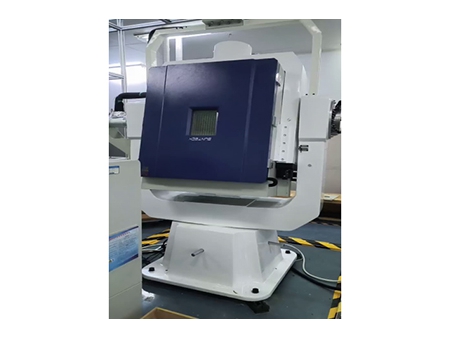

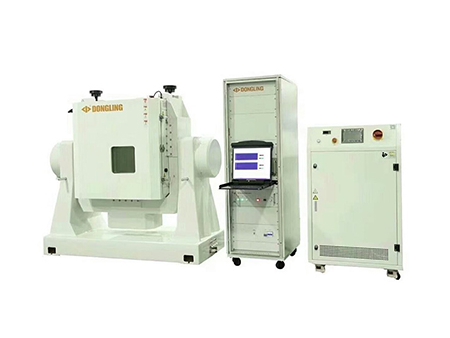

| Model | 2-Axis Rate Table with Temperature Chamber | 2-Axis Rate Table with Temperature Chamber | 3-Axis Rate Table with Temperature Chamber |
| Table top diameter (mm) | ø700 | ø500 | ø500 |
| Rotation axis directions | 2 | 2 | 3 |
| Load capacity (kg) | 60 | 50 | 50 |
| Table top runout (mm) | 0.02 | 0.02 | 0.02 |
| Table top flatness (mm) | 0.02 | 0.02 | 0.02 |
| Perpendicularity (") | ±5 | ±5 | ±5 |
| Rotary accuracy (") | ±2 | ±2 | ±2 |
| Position accuracy (") | ±2 | ±2 | ±2 |
| Position resolution (°) | 0.0001 | 0.0001 | 0.0001 |
| Repeatability (") | ±2 | ±2 | ±2 |
| Range of motion | 360° continuous | 360° continuous | 360° continuous |
| Rate range (°/s) | Inner/Outer 1200 /600 | Inner/Outer ±600/ ±300 | Inner/Middle/Outer ±600/±300/±300 |
| Rate resolution (°/s) | ±0.001 | ±0.001 | ±0.001 |
| Rate accuracy & stability (measured over 360 deg.) | Better than 0.002% | Better than 0.002% | Better than 0.002% |
| Acceleration (°/s²) | Inner/Outer 450 / 200 | Inner/Outer 600 / 300 | Inner/Middle/Outer 600/ 450/300 |
| Bandwidth | Inner/Outer 50Hz/20Hz | Inner/Outer 25Hz/10Hz | Inner/Middle/Outer 25Hz/15Hz/10Hz |
| Temperature chamber space (mm) | 750*750*650 | 550*560*500 | 550*560*500 |
| Temperature range (℃) | -65~ 125 | -60~ 85 | -60~ 85 |
| Temperature accuracy (℃) | ±1 | ±1 | ±1 |
| Temperature rise rate (℃/min) | 1-2 | 1-2 | 1-2 |
| Temperature stability (℃) | ±1 | ±1 | ±1 |
| | | | |

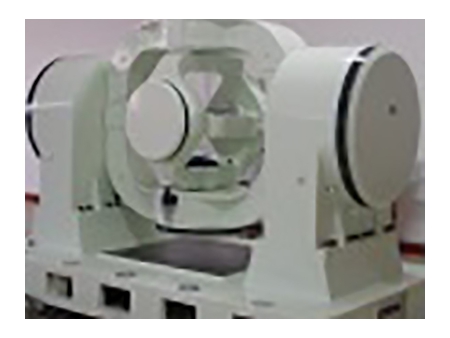

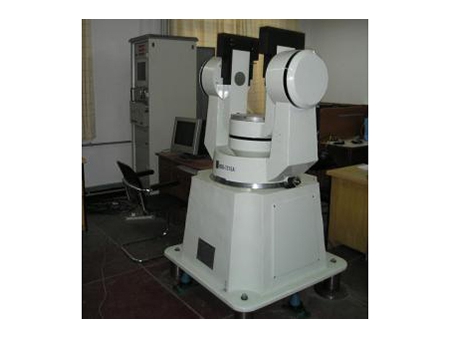

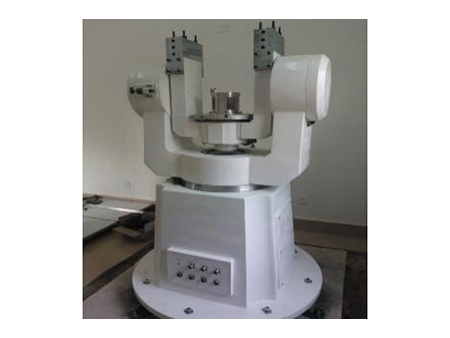

| Model | 3-Axis Multifunctional Rate Table | 3-Axis Multifunctional Rate Table | Dynamic Target Motion Simulator |
| Table top size (mm) | ø300*400 | ø500*500 | ø800*800 |
| Rotation axis directions | 3 | 3 | 1 |
| Load capacity (kg) | ≥50 | ≥50 | ≥500Kg |
| Table top runout (mm) | 0.02 | 0.02 | 0.05 |
| Table top flatness (mm) | 0.02 | 0.02 | 0.02 |
| Perpendicularity (") | ±5 | ±5 | ±5 |
| Rotary accuracy (") | ±2 | ±2 | ±5 |
| Position accuracy (") | ±2 | ±2 | ±10 |
| Position resolution (°) | 0.0001 | 0.0001 | 0.0001 |
| Repeatability (") | ±2 | ±2 | ±5 |
| Range of motion | 360° continuous | 360° continuous | 360° continuous |
| Rate range (°/s) | Inner/Middle/Outer 600/ 500/ 300 | Inner/Middle/Outer 600/ 500/ 300 | 300°/s |
| Rate resolution (°/s) | ±0.0001 | ±0.0001°/s | ±0.0001°/s |
| Rate accuracy & stability (measured over 360 deg.) | Better than 0.002% | Better than 0.002% | - |
| Acceleration (°/s²) | Inner/Middle/Outer 1200 /800 /600 | Inner/Middle/Outer 1200 /800 /600 | 600°/s² |
| Bandwidth (double-ten) | Inner/Middle/Outer 10Hz/8Hz/ 6Hz | Inner/Middle/Outer 10Hz/8Hz/ 6Hz | Inner: 5Hz |
| | | | |

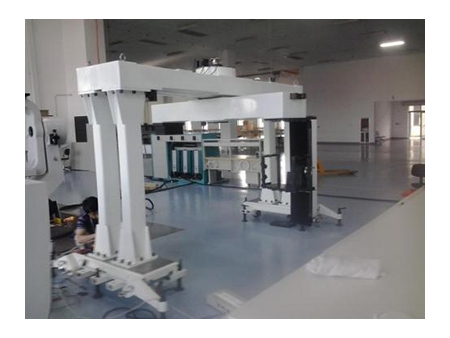

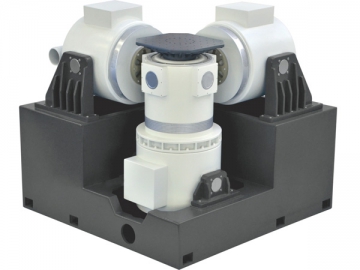

| Model | 3-Axis Flight Motion Simulator | 3-Axis Flight Motion Simulator | 3-Axis Flight Motion Simulator |
| Range of motion | Inner: ±180° Middle: ±90° Outer: ±180° | Inner: continuous Middle: continuous Outer: continuous | Inner: continuous Middle: continuous Outer: continuous |
| Mounting surface size (mm) | ∅500*500 | 400*400*400 | ∅500*500 |
| Load capacity (kg) | ≥50 | ≥50 | ≥50 |
| Angular position measuring resolution (°) | ≤0.0001 | ≤0.0001 | ≤0.0001 |
| Angular position accuracy (″) | ≤3 | ≤2 | ≤2 |
| Angular position repeatability (″) | ≤1 | ≤1 | ≤1 |
| Angular velocity (°/s) | Inner/Middle/Outer 500/300/300 | Inner/Middle/Outer 500/300/300 | Inner/Middle/Outer 7200/300/300 |
| Max. acceleration (°/s) | Inner/Middle/Outer 5000/3000/3000 | Inner/Middle/Outer 15000/7000/7000 | Inner/Middle/Outer 7000/5000/3000 |
| Bandwidth (double-ten) | Inner/Middle/Outer 12Hz/10 Hz/8Hz | Inner/Middle/Outer 20Hz/18 Hz/15Hz | Inner/Middle/Outer 15Hz/12Hz/10Hz |
