Manual positioning stage

The manual multi-axis stage features a compact design, enabling two to five-axis displacement adjustments within a small space. Its axis displacement adjustments are symmetrically designed for left and right-hand operation pairs, with the load surface positioned on the same horizontal plane for convenient operation and adjustment.

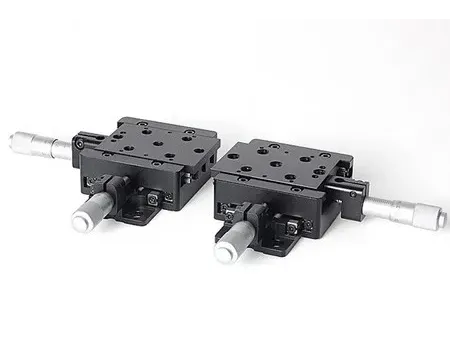

7SWM01213/7SWM01113 Series Two-Axis Translation Stages (travel: 13mm)

Features

The compact structure design allows for precise two-axis translation adjustments in confined spaces while maintaining high orthogonality accuracy.
The combination of precision steel ball bearings and ground steel rods ensures smooth movement, high accuracy, and minimal friction.
The micrometer-driven mechanism provides quantitative readings with a spring reset system, which effectively eliminates backlash and enhances positioning precision.
Both micrometers are positioned on the same horizontal plane, making manual adjustments easier and more convenient for the user.

Specifications

Model	7SWM01213/7SWM01113
Travel	13mm
Minimum graduation	0.01mm
Resolution	0.002mm
Yaw angle	30"
Load	2.5kg
Weight	0.4kg

7SWM02113/7SWM02213 Series Two-Axis Translation Stage (travel: 13mm)

Features

Its compact structure design facilitates precise two-axis translation adjustments in confined spaces while maintaining high orthogonality accuracy.
A cross-roller guide system ensures smooth motion, high precision, and increased load capacity, making it ideal for demanding applications.
The micrometer-driven mechanism provides quantitative readings with a spring reset, eliminating backlash and improving positioning accuracy.
Both micrometers are positioned on the same horizontal plane, enabling comfortable and precise manual adjustments.

Specifications

Model	7SWM02113/7SWM02213
Travel	13mm
Minimum graduation	0.01mm
Resolution	0.002mm
Yaw angle	30"
Load	4kg
Weight	0.5kg

7SWM02125/7SWM02225 Series Two-Axis Translation Stage (Travel: 25 mm)

Features

Designed for compact spaces, this stage enables precise two-axis translation adjustments while maintaining high orthogonality accuracy.
A cross-roller guide system enhances rigidity, ensures smooth motion, and supports high load capacities, making it ideal for demanding applications.
Equipped with a micrometer-driven mechanism, it provides quantitative readings with a spring reset, effectively eliminating backlash and improving positioning accuracy.
Both micrometers are positioned on the same horizontal plane, allowing for comfortable and precise manual adjustments.

Specifications

Model	7SWM02125/7SWM02225
Travel	25mm
Minimum graduation	0.01mm
Resolution	0.002mm
Yaw angle	30"
Load	4kg
Weight	0.6kg

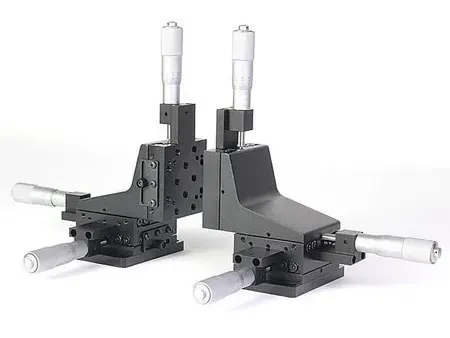

7SWM03113/7SWM03213 Series 3-Axis Translation Stage (Travel: 13 mm)

Features

Designed for three-axis translation, this stage provides precise movement and maintains high orthogonality accuracy in compact setups.
Cross roller bearings ensure smooth travel, high rigidity, and the ability to support substantial loads.
Micrometer-driven positioning enables fine adjustments with spring reset functionality, eliminating backlash for consistent accuracy.
An ergonomic layout places both micrometers on the same horizontal plane, simplifying manual control and improving usability.
A rigid lifting mechanism enhances load capacity and stability, outperforming traditional spring-based lifting systems.
Compatible with 7MFP02 series two-dimensional tilt mounts, making it well-suited for precise optical fiber alignment and other delicate adjustments.

Specifications

Model	7SWM03113/7SWM03213
Travel	13mm
Minimum graduation	0.01mm
Resolution	0.002mm
Yaw angle	30"
Load	2.5kg
Weight	0.9kg

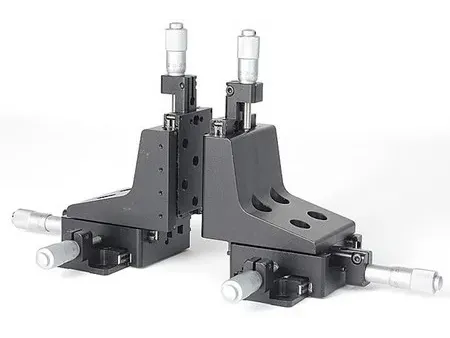

7SWM04113/7SWM04213 3-Axis Translation Stage (Travel: 13mm)

Features

Engineered for three-axis translation, this stage ensures precise movement while maintaining high orthogonality accuracy in compact applications.
Fitted with cross roller bearings that provide smooth motion, enhanced rigidity, and strong load-bearing capacity, making it suitable for high-precision adjustments.
Micrometer-driven positioning allows for accurate, incremental movements, while the spring reset mechanism effectively eliminates backlash.
An intuitive design places both micrometers on the same horizontal plane, making manual operation more accessible and efficient.

Specifications

Model	7SWM04113/7SWM04213
Travel	13mm
Minimum graduation	0.01mm
Resolution	0.002mm
Yaw angle	30"
Load	4kg
Weight	1kg

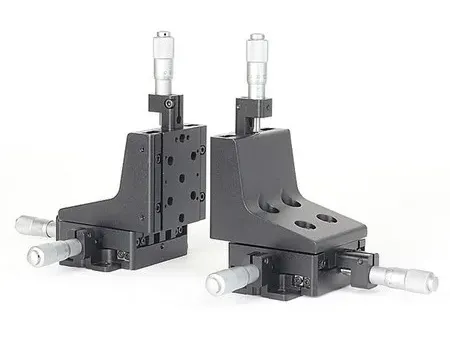

7SWM04125/7SWM04225 Series Three-Axis Translation Stage (Travel: 25 mm)

Features

Designed for three-axis translation, this stage provides precise adjustments while maintaining orthogonality in compact spaces.
Cross roller bearings enhance stability, offering smooth motion, high precision, and strong load capacity for demanding applications.
A micrometer-driven system ensures accurate positioning, while the spring reset mechanism effectively eliminates backlash.
The ergonomic design places both micrometers on the same horizontal plane, allowing for comfortable and intuitive manual operation.

Specifications

Model	7SWM04125/7SWM04225
Travel	25mm
Minimum graduation	0.01mm
Resolution	0.002mm
Yaw angle	30"
Load	4kg
Weight	1.2kg

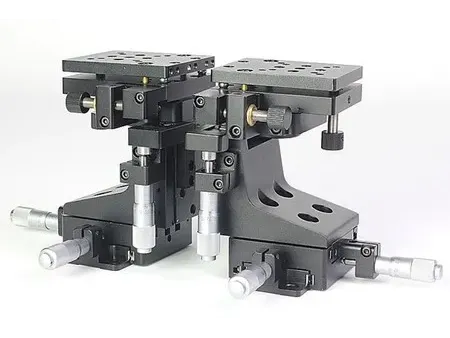

7SWM0501/7SWM0502 Five-Axis Translation Stage (Travel: 13 mm)

Features

Designed for multi-degree-of-freedom adjustments, this stage enables precise movement in three linear axes along with pitch and rotation control.
High-precision steel ball bearings and ground steel rods ensure smooth motion, excellent accuracy, and reliable performance.
Micrometer-driven translation system provides precise positioning with quantitative readings, while the spring reset mechanism eliminates backlash for greater stability.
Pitch and rotation adjustments utilize an M6×0.25 fine-thread screw, combined with a high-quality disc spring reset, ensuring firm and stable positioning.
Both micrometers are positioned on the same horizontal plane, allowing for comfortable manual operation and intuitive control.
A rigid vertical lifting mechanism significantly increases load capacity compared to spring-based lifting systems, enhancing stability and durability.

Specifications

Model	7SWM0501/7SWM0502
Travel	13mm
Pitch and rotation range	±5°
Minimum graduation	0.01mm
Resolution	0.002mm
Yaw angle	30"
Load	2.5kg
Weight	1.15kg
