This product has been discontinued and removed from our shelves.

Our metal bond grinding wheels come in diamond and CBN types and are used for the grinding of all kinds of ferrite magnetic materials that include certain ceramics and ferrite cores.

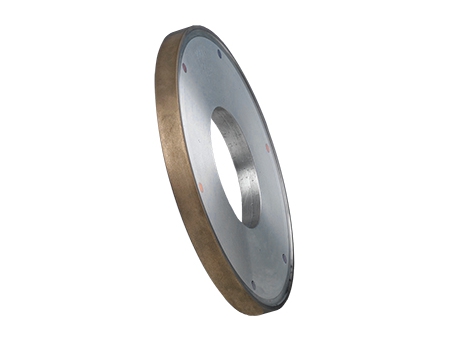

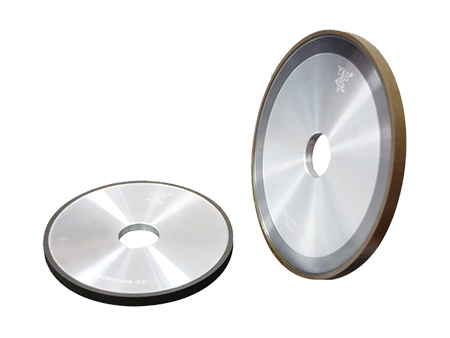

1A1 Metal Bond Grinding wheel
Outer diameter (mm) Overall thickness (mm) Arbor hole diameter (mm) Abrasive width (mm)
80
100 0.4-35 20/22.23/25.4/31.75/32 3-6
115 2-20 20/22.23/25.4/31.75/32
125 0.8-35 4/5/6/8/10
150 1-35 25.4/31.75/32/40
175 3-35 31.75/32/40 5/6/8/10/16
180 10-40 31.75/32/40/50.8/75/76.2
200 1-40 5/6/8/10/16/20
250 10-60 50.8/75/76.2/101.6/127
300 3-60 75/76.2/101.6/127/203 5/6/8/10/16/20/25
350 12-50 127/203
400 3.5-50

Note: other specifications can be customized upon request!
