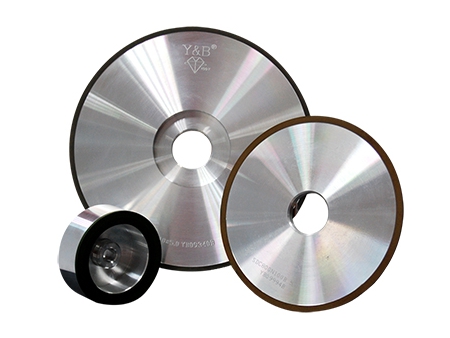

Metal Bond Diamond/CBN Grinding Wheel
Request a Quote
At Yubao, we design and manufacture precision metal bond diamond and CBN wheels to meet or exceed your grinding applications.
Followings are our standard type of metal bond diamond & CBN grinding wheels.
Ideal for the rough grinding, fine grinding and chamfering of glass panels, lenses, sapphires, etc.
| Outer diameter (mm) | Overall thickness (mm) | Arbor hole diameter (mm) | Fillet radius (mm) | Abrasive width (mm) | |
| 100/125/150/ 180/200 | 6/8/10 | 25.4/31.75/ 32 | Customized | 1-10 |

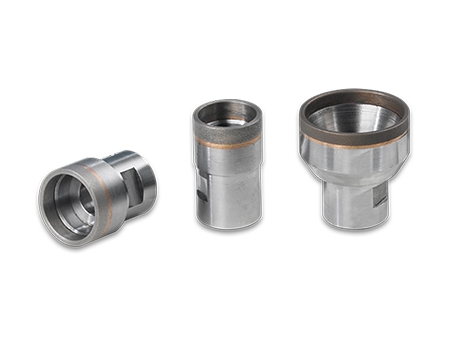

Ideal for the precision grinding of optical lenses (magnifying glasses, telescopes, cameras, etc.), eyeglass lenses, glass lampshades, and more.
| Outer diameter (mm) | Overall thickness (mm) | Arbor hole diameter (mm) | Fillet radius (mm) | Abrasive width (mm) | Abrasive thickness (mm) | |
| 28/33/38/ 43/53/63 | 55 | 18 | Customized | 1-7 | 1-7 |
Ideal for processing of sapphire glass, resin lenses, etc.
| Outer diameter (mm) | Overall thickness (mm) | Arbor hole diameter (mm) | Abrasive width (mm) | |
| 20 | ||||
| 23 | 12-20 | |||
| 25 | 2-20 | 5/6/8/10/12 | 2/2.5/3/4 | |
| 30 | 2-20 | 5/6/8/10/12/13 | 2/2.5/3/4 | |
| 35 | 2-20 | 10/12/12.7/16 | 2/2.5/3/4/5 | |
| 40/45/50 | 0.2-20 | 8/10/12/12.7/16 | 2/2.5/3/4/5 | |
| 60 | 0.2-20 | 8/10/12/12.7/16/ 19.05/20/22.23 | 2/2.5/3/4/ 5 | |
| 75/80 | 0.4-30 | 10/16/19.05/ 20/22.23/25.4 | 3/4/5 | |
| 100/150/180/200 | 0.4-35 | 20/22.23/25.4/ 31.75/32 | 3-10 |
Ideal for grinding mill rolls made from some of the hardest materials on earth.
| Outer diameter (mm) | Overall thickness (mm) | Arbor hole diameter (mm) | Fillet radius (mm) | Abrasive width (mm) | |
| 80/100/125/ 150/200 | 6-10 | 12.7/25.4/ 31.75/32/127 | 3-5 | 2-10 |
Ideal for rough grinding, fine grinding and chamfering of GaAs, silicon wafers, etc.
| Outer diameter (mm) | Overall thickness (mm) | Arbor hole diameter (mm) | Fillet radius (mm) | Abrasive width (mm) | |
| 100/125/150/ 180/200 | 6/8/10 | 25.4/31.75/32 | Customized | 1-10 |
Ideal for the grinding of all kinds of ferrite magnetic materials that include certain ceramics and ferrite cores.
| Outer diameter (mm) | Overall thickness (mm) | Arbor hole diameter (mm) | Abrasive width (mm) | |
| 80 | ||||
| 100 | 0.4-35 | 20/22.23/25.4/31.75/32 | 3-6 | |
| 115 | 2-20 | 20/22.23/25.4/31.75/32 | 3-6 | |
| 125 | 0.8-35 | 20/22.23/25.4/31.75/32 | 4/5/6/8/10 | |
| 150 | 1-35 | 25.4/31.75/32/40 | 4/5/6/8/10 | |
| 175 | 3-35 | 31.75/32/40 | 5/6/8/10/16 | |
| 180 | 10-40 | 31.75/32/40/50.8/75/76.2 | 5/6/8/10/16 | |
| 200 | 1-40 | 31.75/32/40/50.8/75/76.2 | 5/6/8/10/16/20 | |
| 250 | 10-60 | 50.8/75/76.2/101.6/127 | 5/6/8/10/16/20 | |
| 300 | 3-60 | 75/76.2/101.6/127/203 | 5/6/8/10/16/20/25 | |
| 350 | 12-50 | 127/203 | 5/6/8/10/16/20/25 | |
| 400 | 3.5-50 | 127/203 | 5/6/8/10/16/20/25 |
Note: Other specifications can be customized upon request!
