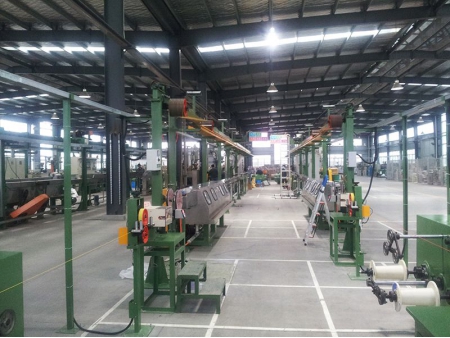

Screw extruder line for specialty cable insulation and sheathing

Elevate your specialty cable production with our Special Cable Extrusion Line.

Our special cable extrusion line is specifically designed to meet the insulation and sheathing requirements of specialty cables and electronic wires, supporting various plastic materials such as PE, PVC, XLPE, and more.

Specifications
Model
Ø40
Ø50
Ø60
Ø70
Ø80
Ø90
Screw diameter Ø40 mm Ø50 mm Ø60 mm Ø70 mm Ø80 mm Ø90 mm
Extrusion amount 50 kg/h 80 kg/h 100 kg/h 140 kg/h 200 kg/h 250 kg/h
Applicable materials PE, PVC, XLPE and etc.
Control mode Touch screen PLC
Max line speed 400 m/min 600 m/min 600 m/min 600 m/min 300 m/min 200 m/min
Details

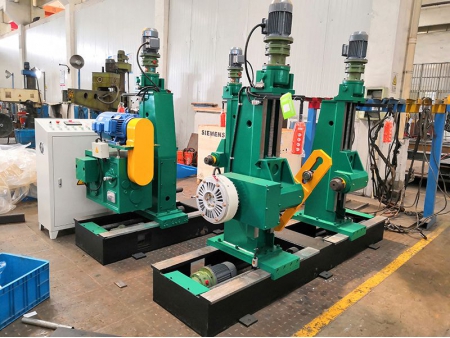

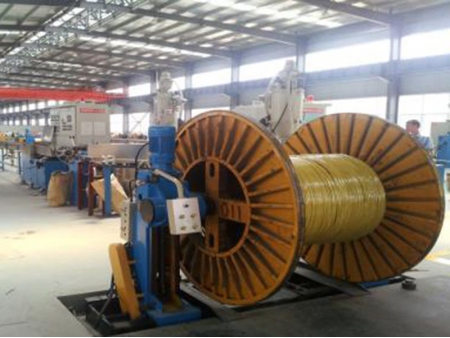

Pay-Off

  • Pneumatic mechanical tension control for smooth payout
  • Proximity switch-based metering and wire break detection

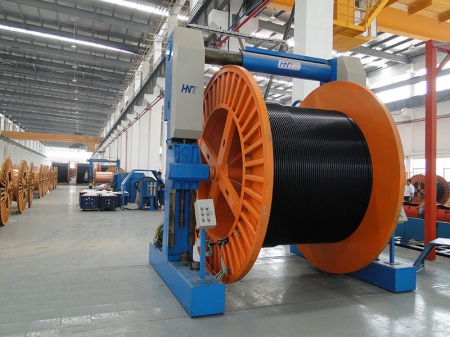

Take-Up

  • Motorized wire clamping with mechanical and electrical protection mechanisms
  • Easy loading and unloading of wire bobbins
  • Synchronization with the main machine for continuous tension during operation and delayed stoppage after machine shutdown

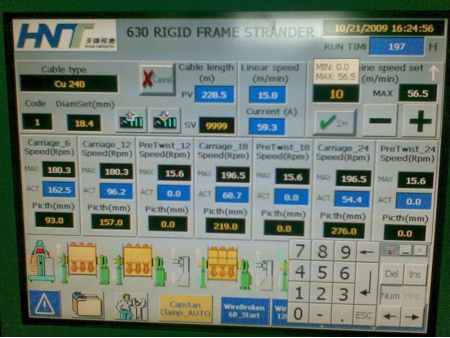

Control System

  • Siemens PLC control for smooth operation and reliable performance
  • All technical parameters adjustable via the touchscreen interface, with the ability to store production process parameters
