Monofilament Extrusion Line

Request a Quote

View All: http://castfilmextruder.com/3-monofilament-extrusion-line.html

Technical Parameters

Model No.	SJ65	SJ75	SJ90
Screw Diameter	Ф65mm	Ф75mm	Ф90mm
Screw L/D	1:33	1:33	1:33
Die Diameter	160mm	200mm	200mm
Extrusion Capacity	max 60kg/h	max 80kg/h	max 250kg/h
Monofilament Dia.	0.10-2.0mm	0.10-2.0mm	0.10-2.0mm
Installed Power	Appr. 150kw	Appr.180kw	Appr.240kw

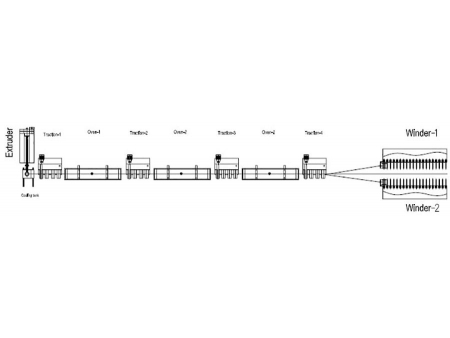

Line Layout

By using raw materials of PET, PA, PE and PP, the monofilament extrusion line is provided for lots of applications such as brush, broom, fishing line and net, ropes, sewing and zipper thread, ect. The monofilament production process mainly follows the steps of extrusion, forming, stretching, heat setting and winding.

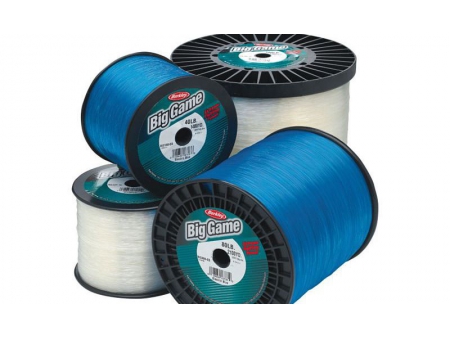

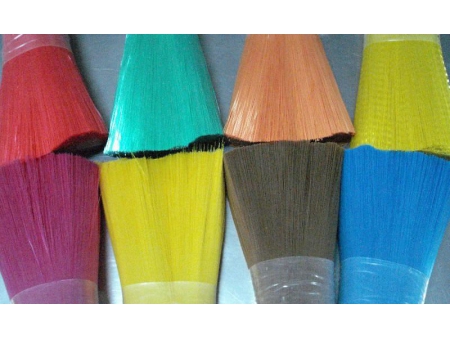

To meet various needs of end-use products, different winding systems are then offered. Flange winder is more often used for making brush and broom, bobbin winder is frequently applied for textile such as sewing thread; and spool winder is crucial for producing fishing line. Therefore, the monofilament extrusion line is popular for its user-friendly operation and reliable performance.
