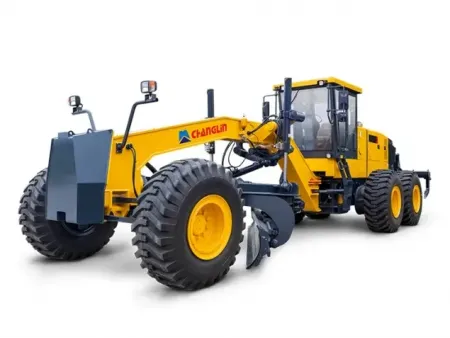

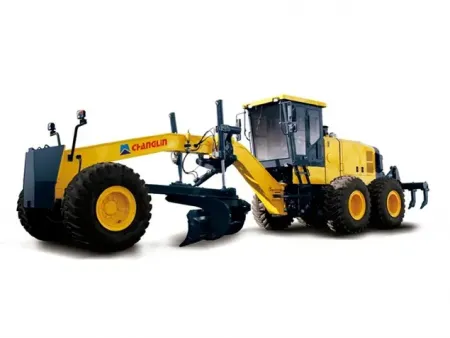

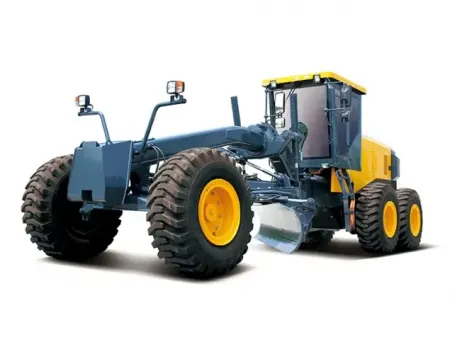

732T Motor Grader

Request a Quote

View All: http://sinomachhiglobal.com/2-732t-motor-grader.html

Equipped with reliable Cummins QSM11-C330 engine
Single-handle electro-hydraulic controlled power-shift T/M, 6 forward & 3reverse shifts makes operation easy and convenient
Hydraulic lock, auto lock/unlock NO-SPIN differential ensures stability and powerful traction
Ideal axel load allocation provides excellent stability while cutting hard surface

Consulting Products Information

Serviceable, efficient hydraulic system enables every part to be fully used
Box-typed frame and advanced T/M enable it to complete heavy-duty work
A wide working range is accomplished through flexible blade suspension system and articulated frame

Specifications of Motor Grader:

Basic specification
Engine model	Cummins QSM11-C330
Rated power	246KW@2100rpm
Dimension(L×W×H)	12500×3300×3700（mm）
Operating weight(Standard)	28000KG
Performance specification
Travelling speed ,forward	5.5/8.6/13.3/20.3/29/43
Travelling speed ,reverse	5.5/13.3/29
Tractive force(f=0.75)	144KN
Operating specification
Max. steering angle of front wheels	49°
Max. lean angle of front wheels	17°
Max. oscillation angle of front axle	15°
Frame articulation angle	25°
Min. turning radius using articulation	9m
Blade
Maximum lift above ground	515mm
Maximum grading depth	735mm
Maximum blade position angle	80°
Blade cutting angle	23°~73°
Circle reversing rotation	360°
Moldboard width × height	4620×695mm
