PY350T Motor Grader

Request a Quote

View All: http://changlinglobal.com/3-10-motor-grader.html

As a high-powered crawler-type motor grader with 354HP, this model stands out for its ability to tackle challenging terrains like open-pit mines and large infrastructure sites. Its tracked configuration ensures enhanced traction and stability, especially in loose or uneven ground conditions, making it a reliable choice for long hours of operation under heavy loads.

Length 12500 mm
Operating weight 28000 kg
Blade length 4920 mm

Drivetrain system
Control lever
Travel system

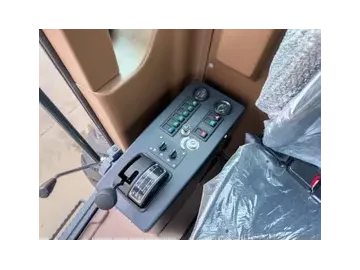

Operator's cabin

Technical Specifications

Overall Dimensions

Length 12500mm
Width 3300mm
Height (to the top of the cab) 3700mm
Wheel base 7760mm
Track width 2650mm
Min. turning radius 9m

Performance

Operating weight 28000kg
Blade length 4920mm
Blade height 695mm
Shovel blade thickness 20mm
Max. lift above ground 515mm
Max. grading depth 735mm
Max. shoulder reach (outside of rear tires) 2260mm(R)/1950mm(L)

Travel Speed

Forward (1-6) 5.418.2/12.7119.3127.5/41km/h
Reverse (1-3) 5.4/12.7127.5km/h

Diesel Engine

Model Cummins
Type Electronic fuel injection, turbocharged, air-to-air cooling; temperature-controlled independent cooling system
Rated output 268kW
Rated speed 2100r/min
Max. torque 1830N.m@1400r/min
