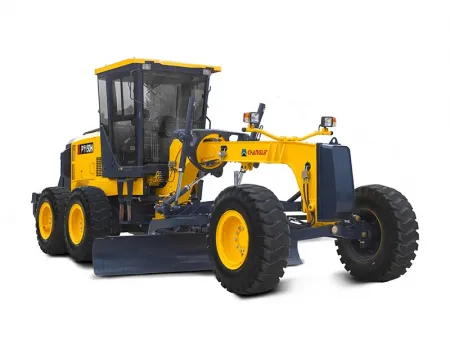

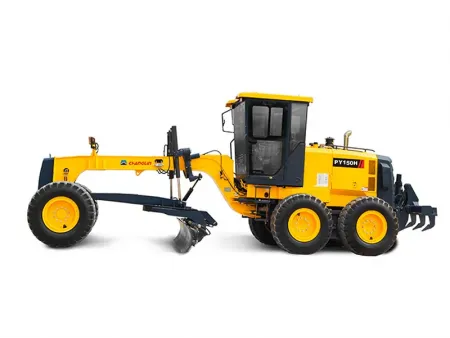

PY150H Motor Grader
Ideal for medium-scale earthmoving projects, this 150-horsepower motor grader stands out for its durability and efficient grading capabilities. Designed to perform reliably in demanding conditions, it offers easy handling, solid traction, and enhanced operator comfort, making it a practical choice for municipalities and contractors working on road construction or land development.
- Length 8290 mm
- Operating weight 12000 kg
- Blade length 3658 mm
Equipped with single-lever electrohydraulic control and a powershift transmission with six forward and three reverse gears, allowing smooth and effortless operation.
An optional 2D auto-leveling system is available to help maintain consistent blade height and slope control, which reduces the number of passes needed and increases grading accuracy in demanding tasks.
The hydraulic system is built around a single-pump configuration that divides pressure through proportional flow valves, minimizing fluid loss while maintaining steady 17.5 MPa performance across all key components.
Twin heavy-duty roller chains ensure durability during high-load work. With an average breaking strength of 26 tons and no need for manual tensioning, they offer excellent reliability even in extreme operating conditions.
The moldboard delivers excellent cutting performance, reaching a depth of up to 535 mm and offering a wide blade angle adjustment from 29° to 77°, making it suitable for everything from soil stripping to precision contouring.
Operator comfort is enhanced with an unobstructed view of the work area, a cushioned seat with headrest, and an optional ROPS/FOPS cabin. Inside, the deluxe setup includes an MP3/FM system, high-power climate control, and a USB port for added convenience during long workdays.
Overall Dimensions
- Length 8290mm
- Width 2600mm
- Height (to the top of the cab) 3465mm
- Wheel base 5780mm
- Track width 2120mm
- Min. turning radius 6.6m
Performance
- Operating weight 12000kg
- Blade length 3658mm
- Blade height 580mm
- Shovel blade thickness 20mm
- Max. lift above ground 410mm
- Max. grading depth 560mm
- Max. shoulder reach (outside of rear tires) 2000mm
Travel Speed
- Forward (1-6) 6.9/10.7/17.3/26/37.8/53.4km/h
- Reverse (1-3) 6.9/17.3/37.8km/h
Diesel Engine
- Model Dongfeng Cummins
- Type Direct injection, turbocharged, water cooling
- Rated output 110kW
- Rated speed 2300r/min
- Max. torque 560N.m@1500rpm
