U Series LED Downlight, SMD LED Downlight with Combined Optical Forms
Request a Quote
Features
- The ADC12 die-casting aluminum radiator has a large heat dissipation area and quick heat dissipation rate, which can extend the LED lifespan.
- The rear cover wiring uses separate wiring, which can completely separate the driver from the downlight with a simple structure.
- The optical diffuser plate is made of PMMA with a 1.5mm thickness. The transmittance rate is as high as 90%.
- High-quality lamp body surface treatment with white ring edge and titanium color radiator, which gives the downlight a fashionable appearance and durable lifespan.
- The downlight adopts embedded installation, which is fast, convenient, safe and stable. The spring clip is examined using a salt spraying test. The clip can be used in different ceiling thicknesses and will not rust.
- Combined optical form that includes an Aluminum plate, reflective paper and diffuser plate, in order to increase the luminous efficacy.
- The driver of the LED downlight is of high quality. The light has no strobes, PF>0.9. The LED lighting fixture can eliminate the visual fatigue caused by traditional light flicker.
- There are three different U series LED downlights to choose from: 15W, 22W, and 30W
Specification
- LED Chip 2835 Epistar SMD
- LED Driver Tridonic, Philips, OSRAM, Lifud, BOKE and others are available
- Dimming option Non-dimming, DALI, TRIAC, 0/1-10V, DMX, RF, ZigBee
- PF >0.9
- Input Voltage AC220-240V/AC100-240V 50/60Hz
- CRI 80+90+97+
- CCT 3000K, 4000K, 6000K
- Luminous Efficacy 90-110 lm/W @CRI80 (whole lamp)
- Beam angle 100°
- Body Material ADC12 die-casting aluminum alloy
- Housing color White ring and Titanium color heat sink
- Lifespan 50000 hours
- Warranty 3-5 Years
- 15W
- 22W
- 30W
Product Models

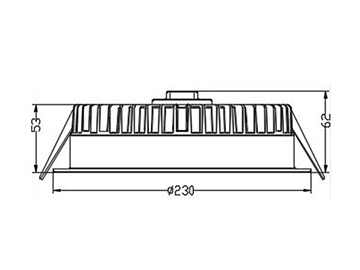

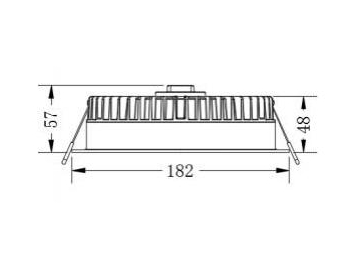

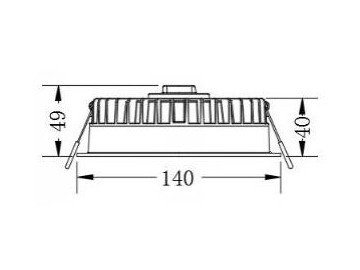

| Model | Power | Fixture Dimension | Cut Hole Dimension | |
| BH-DL-15W-U | 15W | Φ140*H49mm | Φ125-130mm | |
| BH-DL-22W-U | 22W | Φ182*H57mm | Φ160-165mm | |
| BH-DL-30W-U | 30W | Φ230*H62mm | Φ200-210mm | |
Index
LED light, LED chip lighting, COB LED, ceiling light, indoor lighting
