Z Series LED Downlight, SMD Slimline LED Downlight
Request a Quote
Features

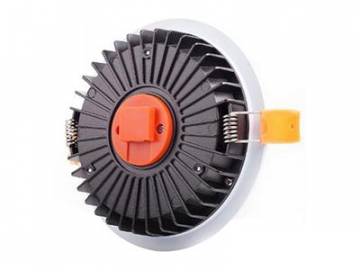

- The ADC12 die-casting aluminum radiator has a large heat dissipation area and quick heat dissipation rate, which can extend the LED lifespan.
- The surface of the radiator is painted with a titanium color, and the surface of the front cover is white painted, giving an exquisite workmanship appearance.
- The diffuser plate is made of PMMA with a 1.5mm thickness. The transmittance rate is as high as 90%.
- The downlight features spring clips for recessed installation, which is fast, convenient, safe and stable. The spring clip is examined using a salt spraying test. The clip can be used in ceiling with different thicknesses and will not rust.
- Combined optical form that includes an Aluminum plate, reflective paper and diffuser plate, in order to increase the luminous efficacy.
- The rear cover wiring uses separate wiring, which can completely separate the driver from the downlight with a simple structure.
- The Z series downlight is ultra-thin and fashionable. The small size lamp body design not only meets client requirements, but also meets the heat dissipation.
- The driver of the LED downlight is of high quality. The light has no strobes, PF>0.9. The LED lighting fixture can eliminate the visual fatigue caused by traditional light flicker.
Specification
- LED Chip 2835 Epistar SMD
- LED Driver Tridonic, Philips, OSRAM, Lifud, BOKE and others are available
- Dimming option Non-dimming, DALI, TRIAC, 0/1-10V, DMX, RF, ZigBee
- PF >0.9
- Input Voltage AC220-240V/AC100-240V 50/60Hz
- CRI 80+90+
- CCT 3000K, 4000K, 6000K
- Luminous Efficacy 90-110 lm/W @CRI80 (whole lamp)
- Beam angle 100°
- Body Material ADC12 die-casting aluminum alloy
- Housing color White ring and Titanium color heat sink
- Lifespan 50000 hours
- Warranty 3-5 Years
- 15W
- 23W
- 30W
Product Models
| Model | Power | Fixture Dimension | Cut Hole Dimension | |
| BH-DL-8W-Z | 8W | Φ110*H36mm | Φ90-95mm | |

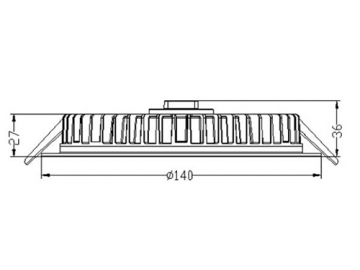

| BH-DL-15W-Z | 15W | Φ140*H36mm | Φ125-130mm | |

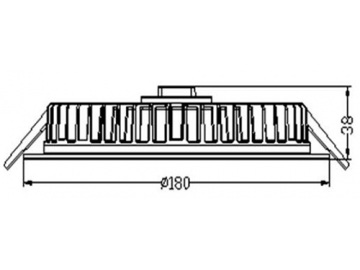

| BH-DL-23W-Z | 23W | Φ180*H38mm | Φ160-165mm | |

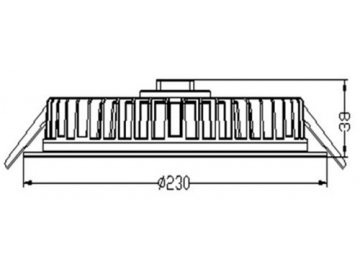

| BH-DL-30W-Z | 30W | Φ230*H38mm | Φ200-210mm | |
