Y1 Series LED Downlight, SMD Recessed LED Downlight
Request a Quote
Features
- The ADC12 die-casting aluminum radiator has a large heat dissipation area and quick heat dissipation rate, which can extend the LED lifespan.
- The surface of the radiator is painted with a titanium color, and the surface of the front cover is white painted, giving an exquisite workmanship appearance.

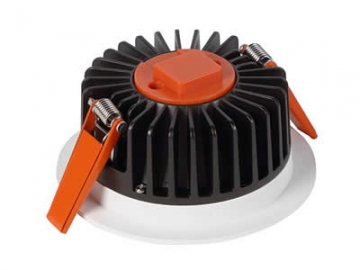

- The Φ110mm and Φ145mm downlight features spring clips for recessed installation, which is fast, convenient, safe and stable. The spring clip is examined using a salt spraying test. The clip can be used in different ceiling thicknesses and will not rust.
- The Φ190mm and Φ230mm downlight uses a bracket for recessed installation. Users first install the downlight body and then the cover (the cover will not be scratched during installation). The specially designed bracket can be adjusted up and down in a flexible manner, and can be used in ceilings with different thicknesses. Disassembly is simple and convenient.
- The rear cover wiring uses separate wiring, which can completely separate the driver from the downlight with a simple structure.
- The front cover features a glare resistant design, which is currently a popular trend on the LED lighting market.
- High quality LED light sources to choose from: OSRAM LED SMD3030, and Samsung LED SMD5630.
- The LED downlight's driver is of a high quality, and the light has no strobes, PF>0.9. The LED lighting fixture can eliminate the visual fatigue caused by traditional light flicker.
- There are eight different Y1 series LED downlights to choose from: 8W,12W, 15W, 20W, 24W, 28W, 30W, 38W
Specification
- Power 8W/12W/15W/20W/24W/28W/30W/38W
- LED ChipOSRAM / Samsung SMD
- LED DriverTridonic, Philips, OSRAM, Lifud, BOKE and others are available
- Dimming optionNon-dimming, DALI, TRIAC, 0/1-10V, DMX, RF, ZigBee
- PF>0.9
- Input Voltage AC220-240V/AC100-240V50/60Hz
- Beam Angle 90°
- Luminous Efficacy 70-90 lm/W @CRI80 (whole lamp)
- Body Material ADC12 die-casting aluminum alloy
- Housing colorWhite ring and Titanium color heat sink
- Lifespan 50000 hours
- Warranty3-5 Years
Dimension

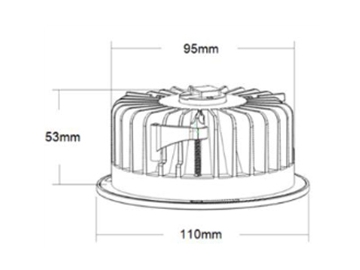

- 8-12W

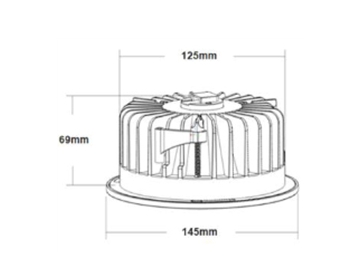

- 15-20W

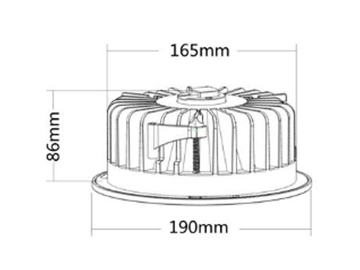

- 24-30W

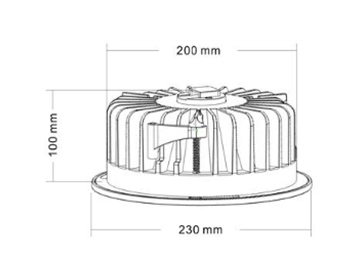

- 28-38W
Product Models
| Model No. | Power | Fixture Dimension | Cut Hole Dimension | LED Chip | CCT | CRI (Ra) | |
| BH-DL-8W-Y1 | 8W | Φ110*H53mm | Φ95-100mm | Samsung 5630 SMD/ OSRAM 3030 SMD | 3000K 4000K 6000K | 80 | |
| BH-DL-12W-Y1 | 12W | ||||||
| BH-DL-15W-Y1 | 15W | Φ145*H69mm | Φ125-130mm | ||||
| BH-DL-20W-Y1 | 20W | ||||||
| BH-DL-24W-Y1 | 24W | Φ190*H86mm | Φ165-170mm | ||||
| BH-DL-30W-Y1 | 30W | ||||||
| BH-DL-28W-Y1 | 28W | Φ230*H99mm | Φ200-210mm | ||||
| BH-DL-38W-Y1 | 38W |
