Request a Quote

Based on our nearly 30 years of experience in fan & blower manufacturing industry, Yilida's axial fans feature proven performance, high efficiency and low noise level. Given the reliability of their design, these axial fans can operate smoothly and efficiently in various applications including air conditioning (HVAC), ventilation, cooling and industrial processing. We are able to offer a vast range of axial fans that differ in design and functionality such as EC axial fan and cooling fan, and they are selectable according to air flow up to 100,000m³/h.

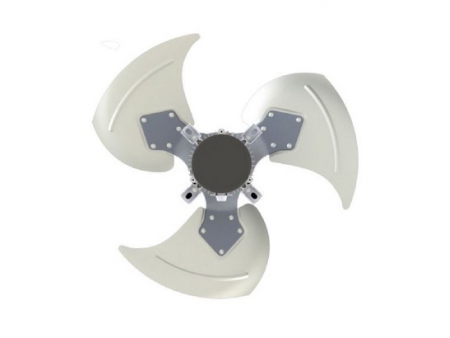

Axial Fan, C6.C7 Series
Usage: screw compressors, general ventilation applications
Impeller diameter: 350-900mm
Air flow: 1800-30000m³/h
Operating temperature: -20℃-80℃
Drive method: internal rotor motor
Axial Fan, D Series
Usage: air conditioners, screw compressors, general ventilation applications
Impeller diameter: 630-900mm
Air flow: 5000-30000m³/h
Operating temperature: -20℃-80℃
Drive method: internal rotor motor
Axial Fan, E Series
Usage: residential air conditioners, home central air conditioners
Impeller diameter: 120-590mm
Air flow: 300-8500m³/h
Operating temperature: -10℃-40℃
Drive method: internal rotor motor
Axial Fan, F Series
Usage: air compressors, portable ventilation devices
Impeller diameter: 350-1800mm
Air flow: 1250-100000m³/h
Operating temperature: -10℃-80℃
Drive method: internal rotor motor
Axial Fan, G Series
Usage: air conditioners, heat pumps, screw compressors, general ventilation applications
Impeller diameter: 450-900mm
Air flow: 2500-30000m³/h
Operating temperature: -10℃-80℃
Drive method: internal rotor motor
Axial Fan, J Series
Usage: air conditioners, heat pumps and other general ventilation devices requiring low air resistance
Impeller diameter: 560-800mm
Air flow: 4000-20000m³/h
Operating temperature: -10℃-80℃
Drive method: internal rotor motor
EC Axial Fan, RMSWF Series
Usage: refrigerators and freezers
Impeller diameter: 300-900mm
Air flow: 1000-33000m³/h
Pressure: 0-240Pa
Motor power: 141W-1912W
Communication: VSP/PWM/485
Insulation class: F
Operating temperature: -40℃-60℃
EC Axial Fan with External Rotor
Usage: air conditioning, supply and exhaust ventilation systems
Impeller diameter: 400-600mm
Air flow: 1800-13500m³/h
Pressure: up to 200Pa
Drive method: direct drive
Installation: suitable for both vertical and horizontal mounting
EC Axial Fan with External Rotor (Cooling Fan)
Usage: air conditioning, supply and exhaust ventilation systems
Impeller diameter: 400-600mm
Air flow: 1800-13500m³/h
Pressure: up to 200Pa
Drive method: direct drive
Installation: suitable for both vertical and horizontal mounting
Axial Fan with External Rotor (Cooling Fan), LF2 Series
Usage: air conditioning, supply and exhaust ventilation systems
Impeller diameter: 500-630mm
Air flow: 1800-13500m³/h
Pressure: up to 200Pa
Drive method: direct drive
Installation: suitable for both vertical and horizontal mounting
EC Backward Curved Axial Fan with External Rotor
Usage: residential air conditioners, home central air conditioners
Impeller diameter: 250-910mm
Air flow: 1500-30000m³/h
Operating temperature: -10℃-40℃
Drive method: internal rotor motor

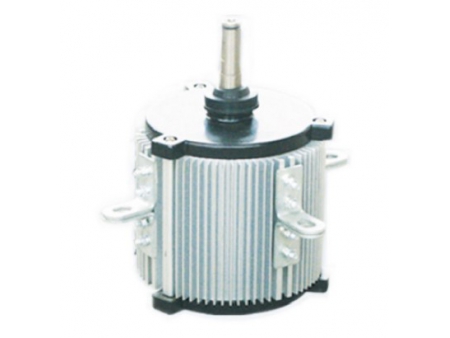

Fan Motor, YSF/YDF Series
Protection class: IP54, IP55
Insulation class: F
Output power: 40-40000W
Number of poles: 2, 4, 6, 8
Operating conditions
Ambient temperature: -10℃-80℃
Relative humidity: ≤95%
Altitude: ≤1000m
