Closed Circuit Axial Piston Motor, MF Series

Request a Quote

View All: http://hydraulic-component.com/2-1-closed-circuit-axial-piston-motor-mf-series.html

MF Series

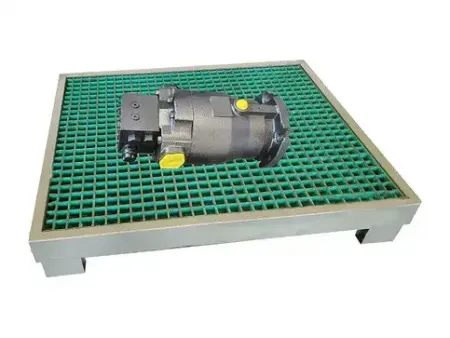

Closed Circuit Axial Piston Motor

Fixed displacement hydraulic motor for closed loop operation

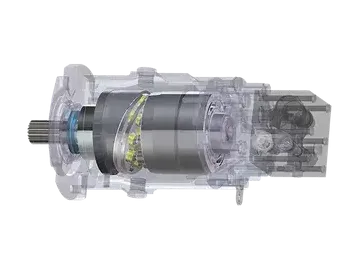

The MF series closed circuit axial piston motor is built to deliver a reliable, high-performance solution for your closed-circuit systems. This swashplate-type fixed displacement motor, designed with German-made high-pressure seals, minimizes oil leakage to nearly zero, ensuring top reliability in demanding applications. It is largely based on the technology of the American SAUER SUNDSTRAND MF20 series hydrostatic drive motors making them fully interchangeable in connection dimensions and performance parameters, with a rated pressure of up to 42 MPa. Plus, maintenance is a breeze, you can fully disassemble and reassemble it using standard tools, with parts that are easy to swap out.

Key Parameters

Displacement (ml/r): 33.4, 69.8, 89, 110

Rated pressure (Mpa): 35

Max. pressure (Mpa): 42

Typical Applications

Hydraulic Drive Forklifts
Skid Steer Loaders
Agricultural & Forestry Machinery
Other Closed-Circuit Drive Machinery

Features

Easy Maintenance: Simple to assemble and disassemble, with high strength and pressure resistance, making it ideal for series installations.
Standardized Interface: International standard mounting interface for easy setup and operation.
Customizable Options: Customizable to meet your specific needs.

Ready to boost your equipment’s performance? today to explore how the MF Series can be tailored to your project.

Technical Data

Model
Displacement	Displacement range		20-33.3	22-69.8	23-89	110-110.8
Displacement	Max. displacement	ml/r	33.3	69.8	89	110.8
Rotation Speed	Max. continuous working speed (full load)	r/min	3500	3200	3000	3000
	Rated speed	r/min	2500
	Min. continuous working speed	r/min	500
Pressure	Rated pressure	Mpa	35
	Max. pressure (instantaneous)	Mpa	42
	Continuous working pressure (△P)	Mpa	30
	Max. permissible housing pressure (absolute)	Mpa	Constant 0.25 Peak value 0.5
Torque	Continuous output torque (under continuous working pressure)	Nm	143	334	430	621
Torque	Max. output torque	Nm	167	390	502	725
Power	Max. power	kW	56	131	157	212
Temperature	Permissible housing temperature	℃	-40 to 50
Temperature	Max. working temperature of oil tank	℃	80
Weight	Hydraulic motor weight (without hydraulic oil)	kg	34	42	49	49

Download Technical Drawings (PDF)

Closed Circuit Axial Piston Motor MF20
319KB
Closed Circuit Axial Piston Motor MF22
401KB
Closed Circuit Axial Piston Motor MF23
388KB
Closed Circuit Axial Piston Motor MF110
615KB
