2-column Press, 38 - 735 KN
Request a Quote
The 2-column press is a compact, cost-effective open-frame pressing system designed for small-to-medium tonnage requirements and operations needing an accessible workspace.

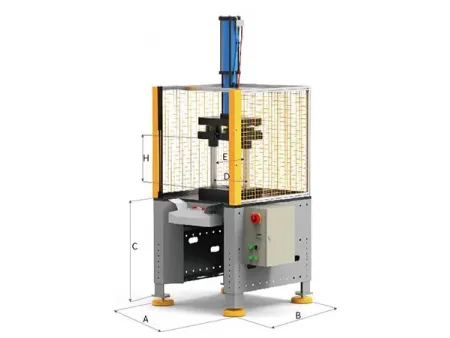

Dimensions
| Model | Max. Capacity | A | B | C | D | E | H | T-Slot | ||
| kN | T | |||||||||
| MB | 4 | 38.2 | 3.82 | 790 | 810 | 775 | 270 | 300 | 280 | 10 |
| 8 | 78 | 7.8 | 790 | 810 | 775 | 290 | 300 | 350 | 12 | |
| 15 | 134 | 13.4 | 790 | 810 | 775 | 300 | 350 | 380 | 14 | |
| 20 | 184 | 18.4 | 790 | 810 | 775 | 360 | 350 | 400 | 18 | |
| 30 | 283.6 | 28.36 | 790 | 810 | 775 | 360 | 350 | 400 | 18 | |
| 50 | 477.6 | 47.76 | 1000 | 810 | 775 | 400 | 450 | 550 | 18 | |
| 75 | 735.7 | 73.57 | 1000 | 810 | 775 | 500 | 500 | 350 | 18 | |
Key Advantages
- Open C-frame Design: Supported by two columns with the front and sides open, providing easy material feeding and unobstructed mold observation.
- Rapid Response: Typically utilized with mechanical or compact hydraulic drives, making it ideal for medium-to-high speed blanking and shallow drawing.
- Small Footprint&Low Cost: A simplified structure designed for production environments with limited space or controlled budgets.
Main Applications
Ideally suited for punching, blanking, embossing, and shallow drawing processes in industries such as electronics, consumer hardware, and sheet metal fabrication. This 2-column press is a popular choice for light-duty stamping due to its operational flexibility and economic practicality.
