The lifting column adopts electric linear actuator technology, and converts the circular motion of the motor into the linear motion of the electric linear actuator through the mechanical structure. It is often used in various types of lifting platform and electric hospital beds in the medical field, and cabinets and platforms in the field of smart home. The electric lifting column features smooth running, easy installation, low maintenance cost cost, etc. Its smooth and quiet operation provides precise height adjustment, significantly improving the comfort and efficiency of the working environment. The lifting column features dust, water and other protection functions, ensuring it adapts to a variety of working environments.

YXN018 Lifting Column
YXN018B Electric Lifting Column
YXN018C Electric Lifting Column

YXN018 Lifting Column

Specifications

Input Voltage	12V/24V DC
Maximum Load	6000N
No-Load Speed	4-30mm/s
Stroke	Customized
Duty Cycle	10%，2min.on/18min.off
Environment Temperature	-15℃-45℃ Special temperatures can be customized
IP Grade	IP20
Stroke switch	Built-in

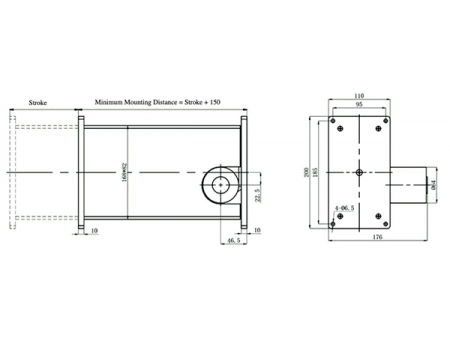

Dimensions

▴Built-in/without Hall signal

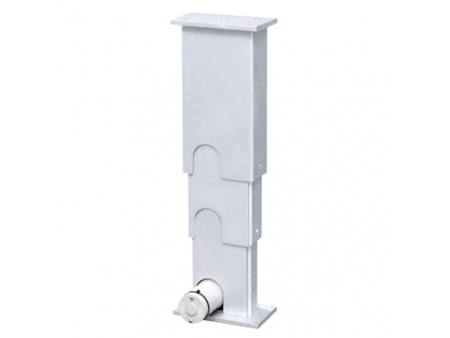

YXN018B Electric Lifting Column

Specifications

Input voltage	12V/24V DC
Maximum load	2000 N
No-load speed	25 mm/s (750 N), 8 mm/s (1500 N)
Stroke	Customized
Duty cycle	10%, 2min.on/18min.off
Environment temperature	-15℃-45℃ (customized available)
IP grade	IP20
Stroke switch	Built-in

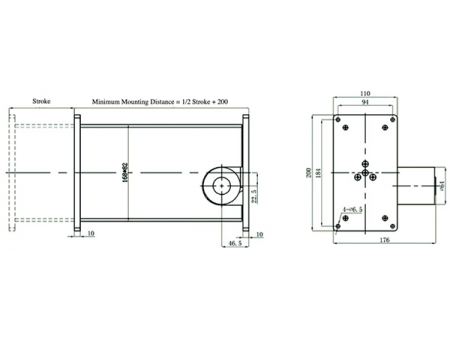

Dimensions

▴Built-in/without Hall signal

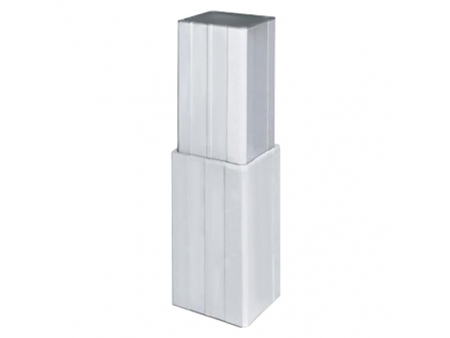

YXN018C Electric Lifting Column

Specifications

Input voltage	12V/24V DC
Maximum load	8000 N
No-load speed	4-30 mm/s
Stroke	Customized
Duty cycle	10%, 2min. On/18min. Off
Environment temperature	-15℃-45℃ (customized available)
IP grade	IP43
Stroke switch	Built-in

Installation size

Stroke	S≤130	S>130
Minimum mounting distance	318	S 188

Dimensions
