4 Column Hydraulic Press Machine
Request a Quote

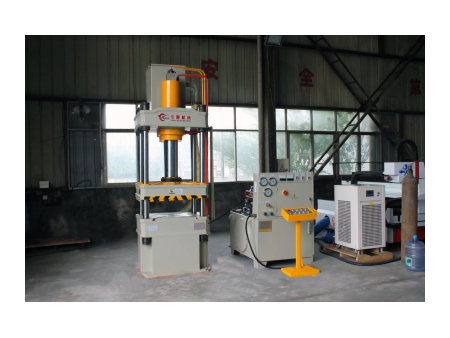

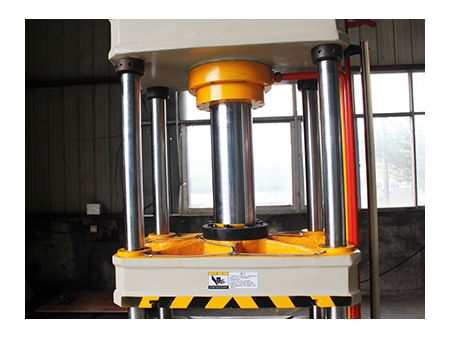

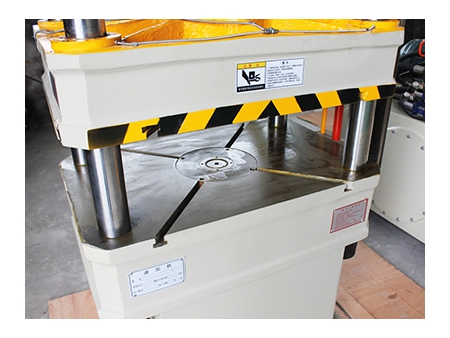

The 4 column hydraulic press machine uses computer optimization and consists of 3 separate parts and 4 hydraulic columns. This hydraulic press is applicable for metal sheet stretching and pulling, stretching, punching, bending. It is also used for pulling, stretching and pressing large-scale products.
- Y32-63
- Y32-200
- Y32-500
- Y32-800
Features

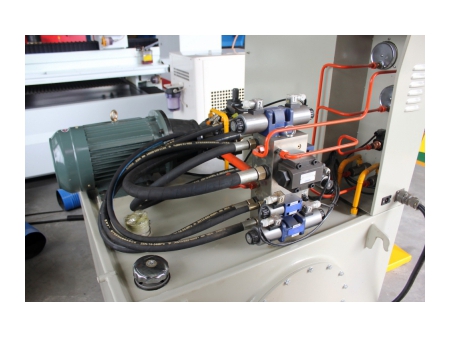

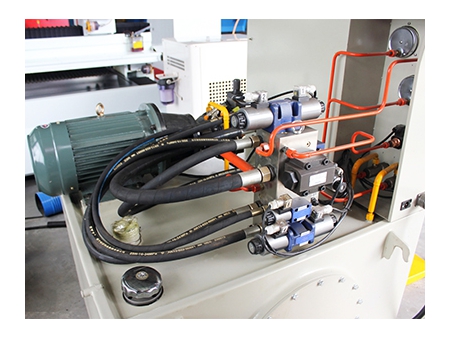

- The hydraulic control system uses an integrated system for the cartridge valve to ensure a reliable operation, long service life, and low hydraulic impact, as well as a reduction pipe connections in order to minimize potential leakage points.

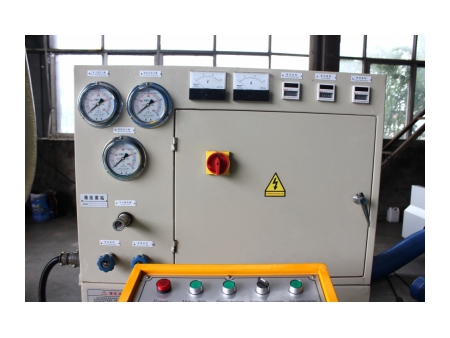

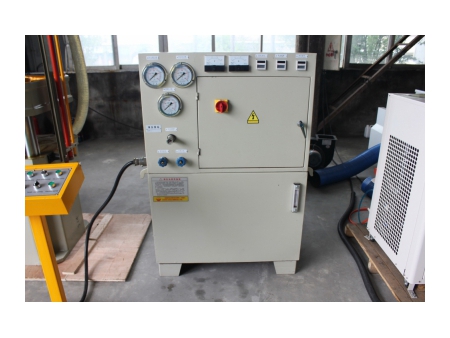

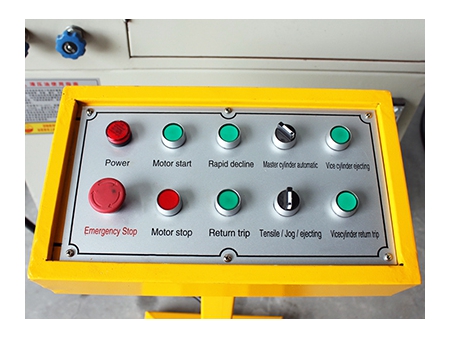

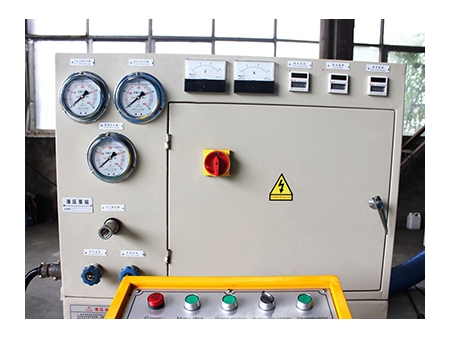

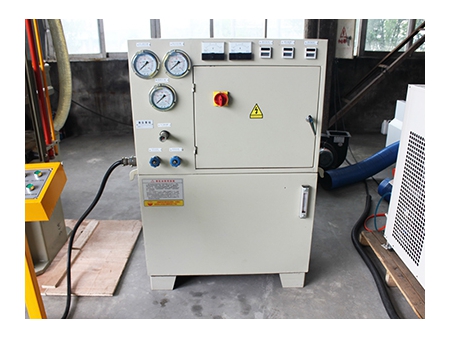

- The independent electric control system ensures the hydraulic press works in a reliable manner with a smooth movement and easy maintenance. Central control is achieved with the push of a button, and features two modes: single operation or loop operation.

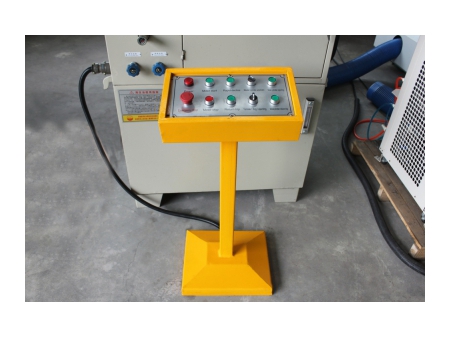

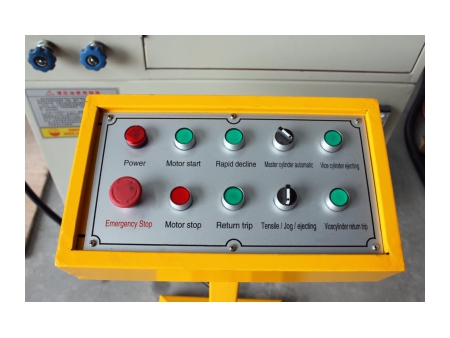

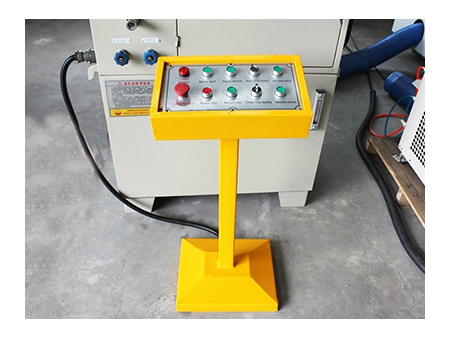

- Users can select the forming process using the operation panel. By using it, hold up time can also be set.
- The working pressure and the stroke can be adjusted within the specified range according to the process requirements

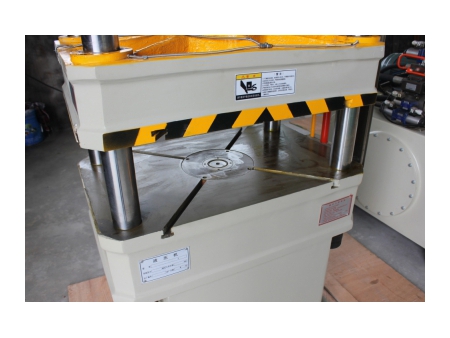

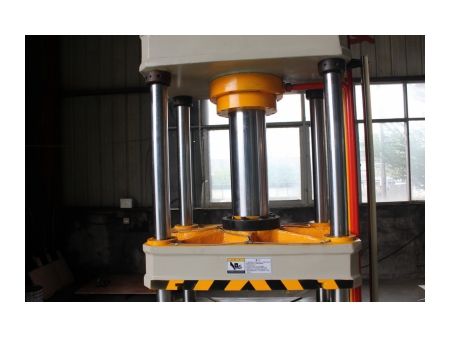

Gallery
Parameters
| Type | YQ32-63 | YQ32-100 | YQ32-200 | YQ32-315 | YQ32-400 | YQ32-500A | YQ32-630 | |
| Technical Parameter | - | - | - | - | - | - | - | |
| Nominal force(kN) | 630 | 1000 | 2000 | 3150 | 4000 | 5000 | 6300 | |
| Ejecting force(kN) | 100 | 250 | 400 | 630 | 630 | 1000 | 1000 | |
| Backstroke force(kN) | 125 | 320 | 450 | 600 | 600 | 1000 | 1000 | |
| Slipper stroke(mm) | 500 | 600 | 700 | 800 | 800 | 900 | 900 | |
| Ejecting stroke(mm) | 160 | 200 | 250 | 300 | 300 | 355 | 355 | |
| Max. opening height(mm) | 800 | 90 | 1120 | 1250 | 1250 | 1500 | 1500 | |
| Slipper stroke speed(mm/s) | Idle stroke down | 22 | 24 | 100 | 100 | 100 | 120 | 80 |
| Work | 9 | 10 | 120 | 12 | 12 | 12 | 10 | |
| Return | 50 | 50 | 50 | 60 | 60 | 70 | 50 | |
| Ejecting stroke speed(mm/s) | Eject | 50 | 80 | 60 | 60 | 60 | 80 | 80 |
| Back | 100 | 160 | 120 | 100 | 100 | 200 | 200 | |
| Workbench size(mm) | Left and right | 520 | 720 | 900 | 1120 | 1250 | 2200 | 1600 |
| Front and back | 490 | 580 | 900 | 1120 | 1250 | 1400 | 1600 | |
| Poles distance(mm) | Left and right | 650 | 800 | 1140 | 1140 | 1500 | 2620 | 1950 |
| Front and back | 350 | 430 | 660 | 900 | 1000 | 1120 | 1200 | |
| Dimension(mm) | Left and right | 900 | 2000 | 1380 | 1160 | 3600 | 4700 | 5200 |
| Front and back | 500 | 1090 | 900 | 1660 | 2300 | 3600 | 4600 | |
| Height on ground | 2400 | 3162 | 2725 | 4295 | 4500 | 5220 | 6000 | |
| Motor power(kW) | 7.5 | 11 | 15 | 22 | 30 | 45 | 60 | |
