CSP-3-5000

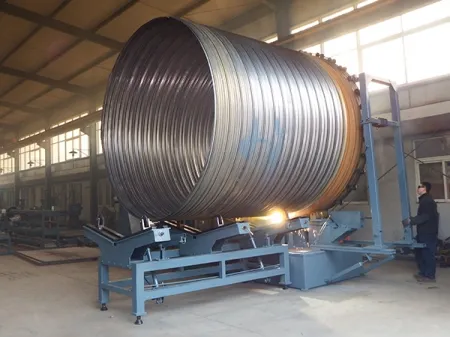

Spiral corrugated pipe making machine for converting steel coil into large diameter corrugated steel culvert pipes

CSP-3-5000

Spiral corrugated pipe making machine for converting steel coil into large diameter corrugated steel culvert pipes

Features

This corrugated metal pipe machine is primarily used for producing large-diameter, heavy-wall spiral ribbed corrugated steel pipes, with single pipe lengths up to 12 meters.
Designed for manufacturing spiral pipes with a thickness of 1.5-3.0mm, this corrugated metal pipe machine utilizes a split structure design, which allows it to accommodate larger steel coils, reducing the frequency of changes and thereby increasing production efficiency.
The corrugated steel pipe machine is equipped with a 37kW main motor for robust power. The feeding speed reaches 20 meters/minute, ensuring high efficiency.
320mm wide steel strips can be adopted in the corrugated metal pipe machine, utilizing wider stock to substantially increase sheet material utilization and pipe output.
Corrugation is pressed directly onto the plate material, resulting in finished pipes with superior load-bearing capacity.

Applications

This corrugated pipe machine is primarily used for manufacturing corrugated metal pipes (CMP) for heavy-duty civil and industrial engineering applications, including:

Culverts
Wind power pile foundations
Pre-buried sewage pipelines
Seabed sand fixation
General drainage projects

Specifications of Corrugated Metal Pipe Machine

Spiral duct diameter range300-5000mm
MaterialCold-rolled steel (1.5-3.0mm)
Steel strip width330mm, 285mm
UncoilerAutomatic feeding, hydraulic support, pneumatic brake
Uncoiler (Max. load capacity)3000kg
Coil inner diameter range460-520mm
Max. coil outer diameter1400mm
Seam typeSpiral lock-seam
Corrugation size76×25mm, 68×13mm
Feeding speed0-20 meters/minute (adjustable)
Cutting methodSynchronous plasma cutting
Power systemElectric, hydraulic
Machine weight15 tons
Machine dimensions4.5×2.1×1.4m
Uncoiler size2.1×1.2×1.75m
Discharge rack size3.2×2.1×1.2m
Total power44.5kW
Power supply380V/50Hz/3Ph
(other power supplies are also available)
Control systemPLC

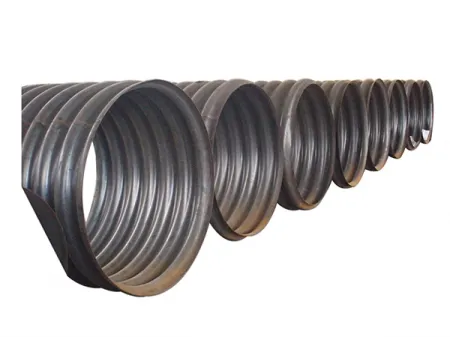

Specifications of Corrugated Metal Pipe

Type	Size (mm)
Type	Wave pitch (P)	Wave depth (H)	Wave radius (R)
1RS	68±2	13	12
3RS	76±2	25	15

Pipe diameter (D)	1RS				3RS
	Wall thickness				Wall thickness
	1.6	2.0	2.5	3.0	2.0	2.5	3.0
300	O	O
400	O	O
450	O	O
500	O	O
600	O	O	O
700	O	O	O
800	O	O	O
900	O	O	O
1000	O	O	O			0
1200	O	O	O	O	O	O	O
1350		O	O	O	O	O	O
1500			O	O	O	O	O
1650			O	O	O	O	O
1800				O		O	O
2000						O	O
2200						O	O
2400						O	O
3000						O	O
