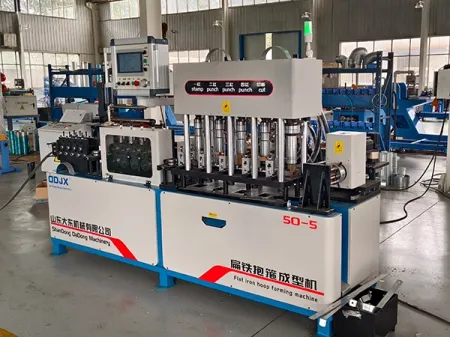

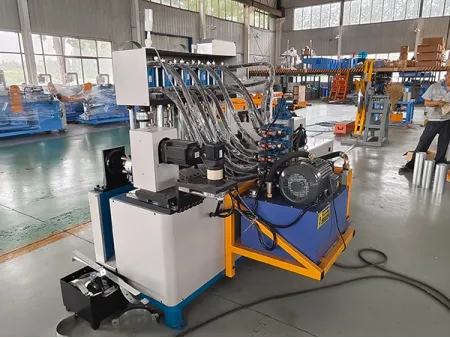

Pipe Clamp Forming Machine

Request a Quote

Website: http://ductmachine-en.com/5-13-pipe-clamp-forming-machine.html

Automatic pipe clamp bending machine for making pipe saddle clamps used to mount spiral ducts and pipes

The pipe clamp forming machine is primarily used for producing duct pipe saddle clamps or similar curved shapes, performing operations like punching, bending, and forming on the flat steel band. This pipe clamp bending machine utilizes CNC technology to achieve automated processing, improving duct production efficiency and product quality. It is ideal for making pipe clamps that are widely used in the ventilation ducting, hardware, and related industries.

Applications

This pipe clamp forming machine is used for producing flat band pipe clamps.

Specifications

Forming width20-50mm
Forming thickness2-5mm
Max. feeding speed55m/min
Max. bending speed800°/sec
Min. diameter30mm
Max. diameter1500mm
Feeding servo motor3kW/1unit
Bending servo motor3kW/1unit
Telescopic servo motor1kW
Punching cylinder125×30
Cutting cylinder150×50
Feeding hydraulic motor7.5kW
Feeding roller materialcr12mov
Hydraulic systemHuade
Electric control systemWeichuang/Xinjie
Hydraulic pumpPV2R2-41RAF1
Die materialDC53
Machine dimensions2.2×1.6×1.8m
Machine weight1.6T

Features

The CNC operation interface is simple to operate and fully functional.
Wide range of application: Capable of producing flat band clamps for transportation, power, and seismic bracing brackets.
Servo motors ensure high precision and accurate dimensions.
Supports customization for various models of flat steel band to meet production needs.
