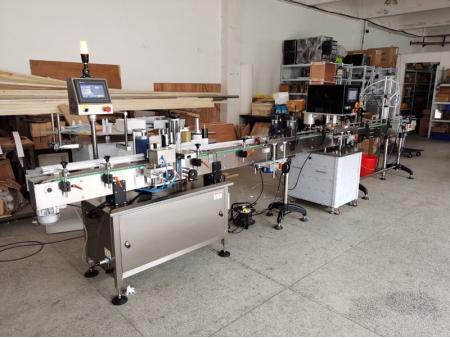

Spray Filling Line
The automatic spray filling line is designed for the quantitative filling, capping, and labeling of water-based products. It provides a fully automated solution for liquid spray production, achieving consistent accuracy and efficiency across various product types.
Bottles for spray products are generally fitted with pump caps, which can be manually inserted and then tightened by the filling machine. A dedicated pump cap sorter can also be added to the line for automatic cap orientation and feeding. Using the anti-itch spray as an example, the following equipment composition demonstrates how this production line operates effectively for similar liquid-based formulations.
- Packaging product: Anti-itch liquid
- Capacity: 1,800-2,400 bottles/hour (50 ml)
- Bottle type: Round spray bottle
- Filling range: 10-10,000 ml

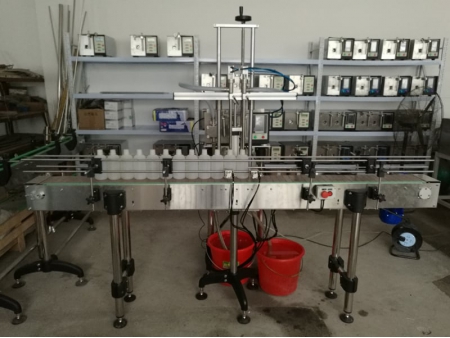

- Dual-Head Gear Pump Liquid Filling Machine
The gear pump filling machine is suitable for a wide filling range and allows precise volume adjustment. Its quick-release pump design enables tool-free disassembly, ensuring that each part can be thoroughly cleaned and disinfected for hygienic operation.
- Filling range: 10-10,000 ml
- Filling accuracy: 0.5-1%
- Output: 1,800-2,400 bottles/hour (50 ml)
- Power supply: AC220V, 50/60Hz, 1P
- Air supply: 0.4-0.6 MPa
- Fully Automatic Servo Four-Wheel Capping Machine
This servo-driven four-wheel capping machine automatically tightens caps using four rotating wheels, ensuring stable torque and uniform sealing. The servo motor allows precise torque adjustment to accommodate different bottle and cap types.
- Output: 1,800-3,000 bottles/hour
- Power supply: AC220V, 50/60Hz, 1P
- Air supply: 0.4-0.6 MPa
- Fully Automatic Round Bottle Labeling Machine
The round bottle labeling machine is designed for automatic application of self-adhesive labels on cylindrical bottles. It delivers high labeling accuracy and excellent visual results, maintaining fast and consistent performance during continuous operation.
- Output: 1,200-1,800 bottles/hour
- Power supply: AC220V, 50/60Hz, 1P
- Air supply: 0.4-0.6 MPa
