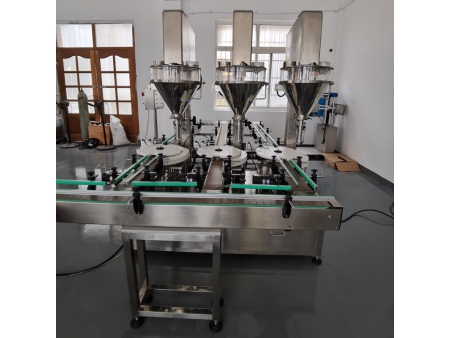

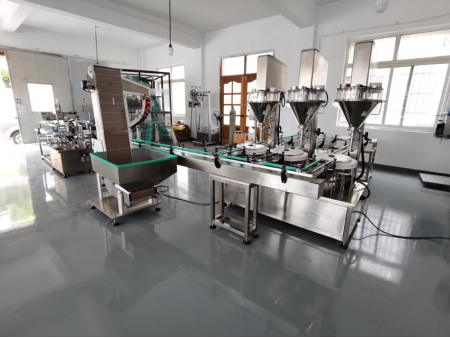

Coffee Powder Filling Line
The automatic powder filling line is designed for the quantitative packaging of various powder products into containers such as bottles, jars, cups, and small pails. It is suitable for a wide range of powder materials, including milk powder, coffee powder, soy milk powder, protein powder, veterinary medicine, disinfectant powder, glucose, solid beverages, MSG, toner, talcum powder, pesticides, dyes, and flavoring powders.
For containers with irregular shapes and non-standard designs, the production line can be customized to meet specific packaging requirements. Taking coffee powder packaging in cup-shaped glass containers as an example, this case demonstrates how the system maintains precise automation control even for complex container designs. The use of glass cups with handles significantly increases the difficulty of automated filling, labeling, and product conveying, making this powder filling line a representative solution for non-standard packaging needs.
- Packaging product: Coffee powder
- Capacity: 1,800-3,000 cups/hour (250 g)
- Container type: Glass cup with handle
- Filling range: 250 g and 500 g
- Powder Filling Machine
The powder filling machine uses an auger dosing system to fill a precise quantity of coffee powder into glass cups. Each filler operates independently, and 1 to 3 filling heads can be activated simultaneously according to production requirements. This setup ensures accurate dosing and flexibility in multi-head configurations.
- Output: 1,800-3,000 cups/hour
- Filling accuracy: ≤1%
- Power supply: AC380V, 50/60Hz, 3P
- Air supply: 0.4-0.6 MPa
- Automatic Press Capping Machine
The automatic capping machine features a conveyor-driven roller press system that securely applies pressure to caps of various sizes, ensuring consistent and firm sealing for each cup or jar.
- Output: 3,000 cups/hour
- Power supply: AC380V, 50/60Hz, 3P
- Labeling Machine for Irregular Glass Cups
This custom-designed labeling machine solves the challenge of labeling irregular-shaped glass cups with handles. It automatically adjusts the cup’s position for precise alignment and applies the label at the exact designated point. Designed as a non-standard model, it ensures stable and accurate labeling for irregular containers.
- Output: 4,000 cups/hour
- Power supply: AC380V, 50/60Hz, 3P
