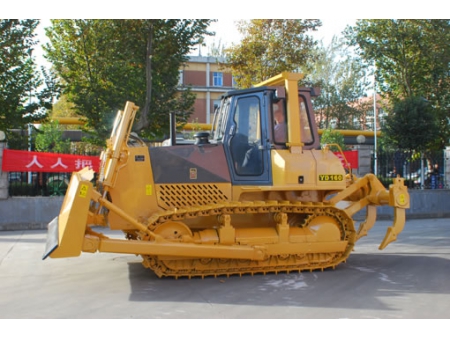

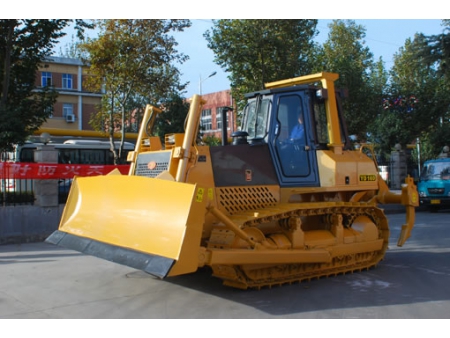

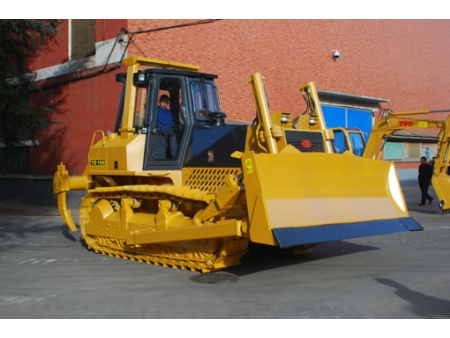

YD160 Crawler Bulldozer

Request a Quote

View All: http://ytocorp.com/2e-yd160-crawler-bulldozer-3.html

Features

This crawler bulldozer is equipped with WD10G178E25 supercharged diesel engine with optimum power reservation coefficient.
The hydraulic torque converter and gear box with hydraulic power shift are adopted in the hydraulic system to meet different work conditions.
Humanized operation layout is applied for crawler bulldozer cab, which features high efficient and comfortable.
The steering system and braking system are controlled by hydraulic power. The shovel blade and scarifier controlled by joystick, flexible, safe and reliable.
The crawler bulldozer has advanced structure and beautiful appearance.

Configuration of the Crawler Bulldozer

The crawler bulldozer can be optionally equipped with a protective device to protect against falling objects.
Uses integral instrument desk.
Maintenance-free battery is adopted.

Specifications

Total Weight	17500kg
Max. Towing Force	154kN
Engine Model	WD10G178E25
Engine Rated Power	131kW
Engine Rated Speed	1850r/min
Forward Ⅲ Gear	3.29~9.63km/h
Reverse Ⅲ Gear	4.28~12.53km/h
Track board width	500mm
Ground Pressure	68kPa
Overall Dimension(L×W×H)	5080×3612×3322mm
Bulldozer Blade (W×H)	3612×1160mm
Max. Lifting Height of Bulldozer Blade	960mm
