Automatic Horizontal Wire Coil Packaging Line
Automatic Packaging for Bundled Coils
SA-WS-10

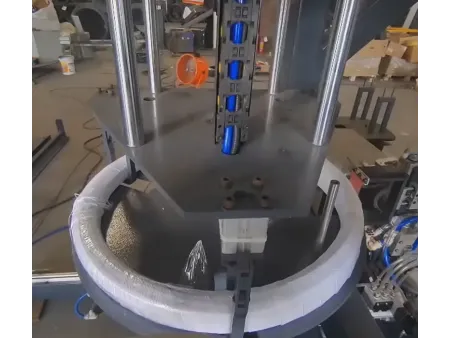

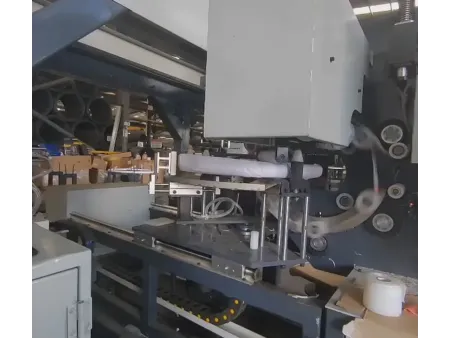

Horizontal coil wrapping machine coupled with AGV for packaging wire rod coils and slit coils
- Packaging speed 1min/pc
- Inner diameter of coil 550mm (±20mm)
- Outer diameter of coil 650mm (±20mm)
- Weight 2.5-20kg

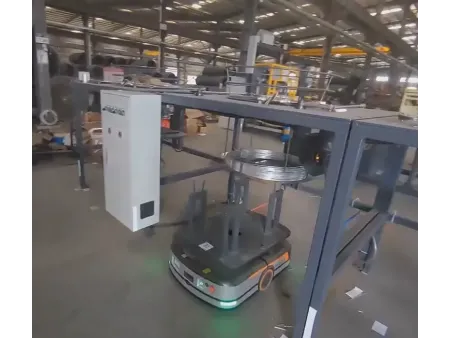

This horizontal wire coil packaging line integrates with an AGV (automated guided vehicle) for fully automated material handling. Once the coils are delivered, the system automatically retrieves and recycles the empty pallets for reuse, improving efficiency and sustainability. Optional automatic weighing and labeling modules are available, with customizable label content. Upon labeling, product information is instantly uploaded to your ERP or MES system, enabling real-time data sharing and streamlined production traceability.
After packaging, a robotic arm automatically sorts and stacks finished products by specification, simplifying downstream processes such as batch packing and warehouse organization. The system features a horizontal structure for enhanced stability during operation and is engineered for fully automated, high-volume packaging of wire rod coils and slit coils.
Designed for packaging metal wire coils ranging from 2 to 25 kg, this horizontal coil wrapping system is suitable for iron wire, aluminum coils, stainless steel coils, copper coils, non-ferrous metal coils, and slit coils.

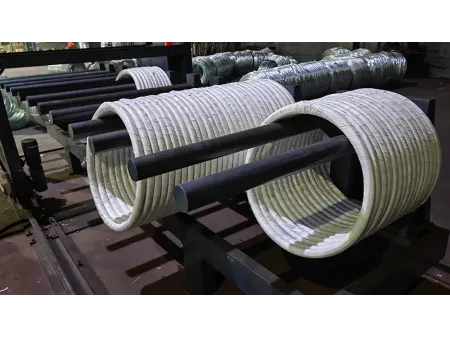

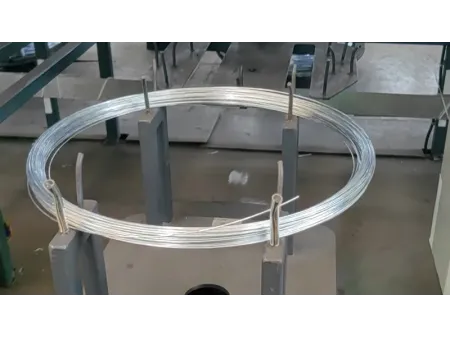

Before packagingAfter packaging- Dimensions (L×W×H): 13.5×10×3.4m
- Inner diameter of coil: 550mm ±20mm
(machine can be designed based on the required size of customer's products) - Outer diameter of coil: 650mm ±20mm
(machine can be designed based on the required size of customer's products) - Weight: 2.5-20kg
- Packaging speed: Approx. 1min/pc
- Voltage: AC380V/50Hz
- Total power: ≤15kW
- Air pressure: ≥0.6MPa
- Reduces packaging material usage by approximately 30%
- Equipped with automatic alarm system for fault detection
- Operable by a single person, significantly reducing labor requirements
- Horizontal structure ensures lower center of gravity and greater stability compared to vertical models
- Compatible with AGV automatic feeding, enabling fully intelligent operation
- Supports remote monitoring and control
- Allows flexible selection of packaging materials and adjustable wrapping configurations
- Fitted with Siemens electrical components for reliability
- Fully customizable dimensions based on your coil sizes and packaging requirements
- High structural stability with a wide base and low center of gravity, enhancing vibration resistance and making the machine easier to operate and maintain
These optional functions can be configured based on your production and system requirements.
- Coil centering, weighing, and coiling
- Material conveying and packaging
- Real-time labeling
- Material classification
- Temporary product storage
- Data input for integration and traceability
- Automated unloading
