Automatic Horizontal Wire Coil Packaging Line

Request a Quote

View All: http://coilpackaging-en.com/1-2-automatic-horizontal-wire-coil-packaging-line.html

SA-WS-25

Horizontal coil wrapping machine with unloading robot for packaging, weighing and labeling of wire rod coils and slit coils

Packaging speed 45sec/pc
Inner diameter of coil 280mm (±20mm)
Outer diameter of coil 440mm (±20mm)
Coil length 210mm

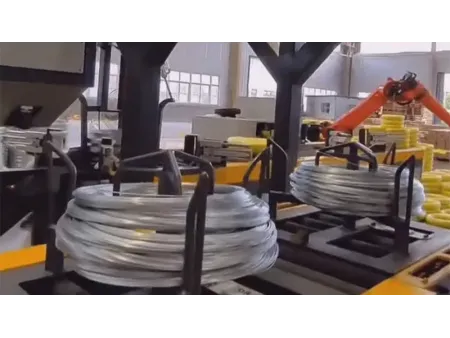

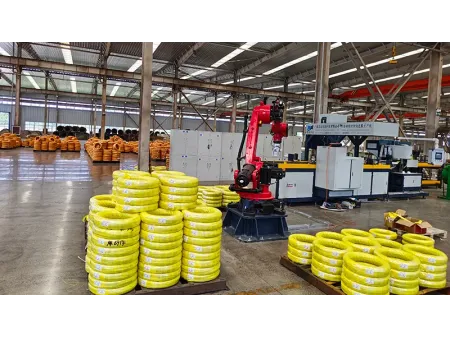

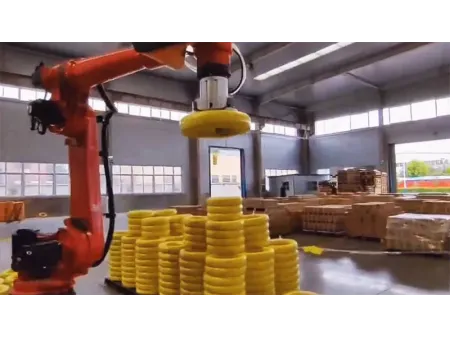

The horizontal wire coil packaging line is designed for efficient and reliable packaging, weighing, and labeling of wire rod coils and slit coils. It features manual feeding and robotic unloading, making it ideal for metal wire manufacturers using pallet-based logistics. Labeling information is automatically uploaded to your ERP or MES system, enabling seamless data sharing and production traceability. Capable of completing each wrap in just 45 seconds, it delivers rapid throughput that drives measurable gains in productivity and operational efficiency.

We offer equipment customization based on your coil specifications, production volume, and plant layout, ensuring a tailored solution to meet your operational needs.

Transforming Coils: From Exposure to Protection

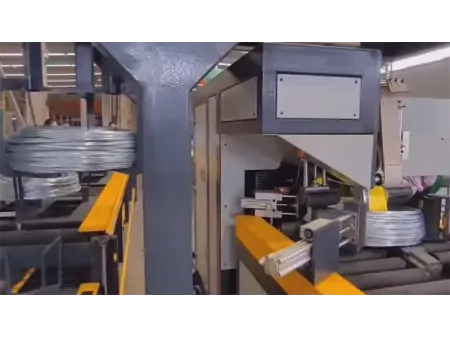

Before packaging

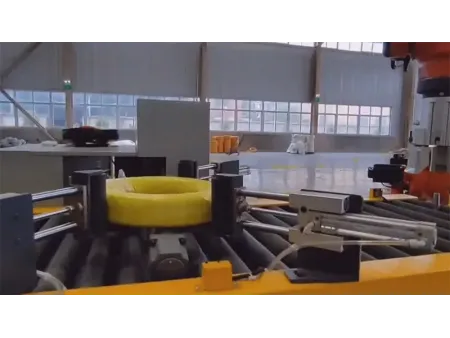

After packaging

Specifications

Dimensions (L×W×H): 15×7×4m
Inner diameter of coil: 280mm ±20mm
(machine can be designed based on the required size of customer's products)
Outer diameter of coil: 440mm ±20mm
Coil length: 210mm
Weight: Max. 50kg
Packaging speed: 45sec/pc
Voltage: AC380V 50Hz
Total power: 35kW
Air pressure: ≥0.6MPa

Can the coil wrapping line be integrated with other production equipment?

Yes, our horizontal wire coil wrapping lines can be seamlessly integrated with other machinery such as wire drawing machines, coilers, and related systems to form a fully automated production line. Integration improves overall efficiency and product quality, and we offer customized solutions based on your facility layout and technical requirements.

Does the wire coil packaging line support automatic labeling?

We offer optional automatic weighing and labeling features. Label content is fully customizable, and once applied, the label data is automatically uploaded to your ERP or MES system for centralized data sharing and traceability.

Can the coil wrapping machine automatically cut and seal the packaging material?

Yes, the system is equipped with an automatic cutting and sealing mechanism. After wrapping, it automatically cuts and secures the packaging material, ensuring a clean, consistent, and durable finish.
