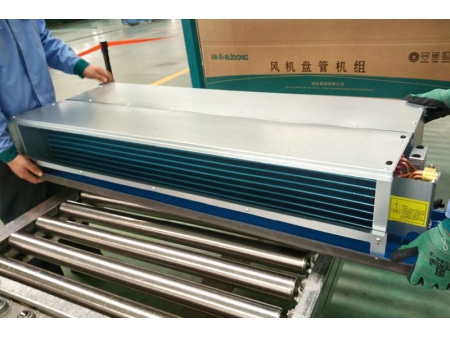

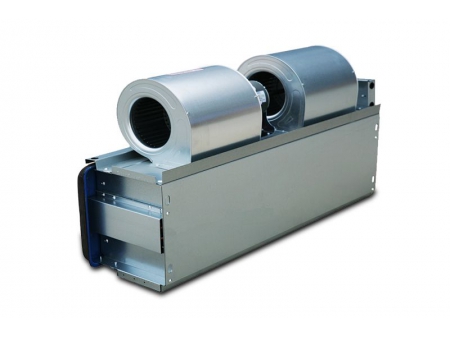

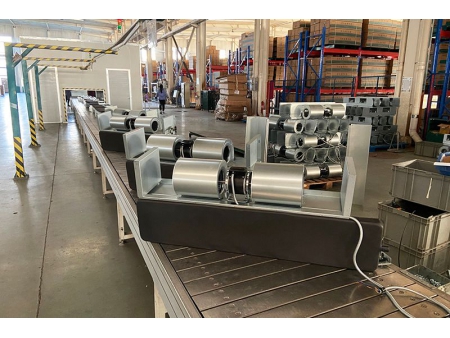

Concealed Fan Coil Unit

Request a Quote

View All: http://ruidonghvac.com/3-1-concealed-fan-coil-unit/index.html

Concealed fan coil units are widely used in hotels, restaurants, factories, hospitals, malls and more. Materials used include a steel plate.

Download

Video

Technical Parameters

Concealed fan coil units

Type		2Pipes 2rows
Model		RFP-34	RFP-51	RFP-68	RFP-85	RFP-102	RFP-136
Air Flow (m³/h)	H	340	530	700	860	1020	1400
	M	270	420	560	700	810	1140
	L	200	310	420	520	610	850
Cooling capacity(W)	H	1770	2670	3530	4450	5300	7060
Heating capacity(W)	H	2700	4050	5400	6750	8100	10800
Input Power(W)	12Pa	32	46	56	75	94	134
	30Pa	40	54	72	87	102	155
	50Pa	46	65	84	98	112	174
Noise dB(A)	12Pa	37	39	41	43	46	46
	30Pa	40	42	44	46	47	48
	50Pa	42	44	46	47	49	50
Water Flow	m³/h	0.31	0.47	0.62	0.78	0.93	1.23
Water P.D.	kPa	30	30	30	40	40	40
Fan Type		Forward multi-wing centrifugal double suction fan
Motor Type		Capacitor running asynchronous motor
Coil	Rows	2
Coil	Pressure	Design pressure 1.6MPa,test pressure 2.5MPa
Pipe size	Water Pipe	R3/4(internal thread)
Pipe size	Drain Pipe	R3/4(internal thread)
Net weight	(kg)	12.7	14.2	16.1	17.4	18.5	25.8
Optional accessories		Thermostat,2-way/3-way valve,return box

Concealed fan coil units

Type		4pipes 3 1 rows
Model		RFP-34	RFP-51	RFP-68	RFP-85	RFP-102	RFP-136	RFP-170	RFP-204	RFP-238
Air Flow (m³/h)	H	340	510	680	850	1020	1360	1700	2040	2380
	M	265	405	535	680	790	1060	1360	1595	1904
	L	195	305	405	510	585	790	1020	1180	1428
Cooling capacity (W)	H	1890	2830	3780	4680	5610	7350	9000	10800	12600
Heating capacity (W)	H	1480	2220	2960	3720	4150	5180	6700	7290	8500
Input Power (W)	12Pa	37	52	62	76	96	134	152	189	228
	30Pa	44	59	72	87	108	156	174	212	253
	50Pa	49	66	84	100	118	174	210	250	300
Noise dB (A)	12Pa	37	39	41	43	46	46	48	50	52
	30Pa	40	42	44	46	47	48	50	52	54
	50Pa	42	44	46	47	49	50	52	54	56
Water Flow	Cooling	0.33	0.5	0.67	0.8	0.96	1.26	1.55	1.86	2.18
Water Flow	Heating	0.13	0.19	0.25	0.32	0.37	0.45	0.58	0.63	0.73
Water P.D.	kPa	30	30	30	30	40	40	40	40	50
Fan Type		Forward multi-wing centrifugal double suction fan
Motor Type		Capacitor running asynchronous motor
Coil	Rows	3 1
Coil	Pressure	Design pressure 1.6MPa,test pressure 2.5MPa
Pipe size	Water Pipe	R3/4(internal thread)
Pipe size	Drain Pipe	R3/4(internal thread)
Net weight	(kg)	15.4	17.2	19.1	20.5	22	29.7	31.5	35.6	41.5
Optional accessories		Thermostat,2-way/3-way valve,return box

Notes

The data in the above tables are all for high range air flow cases with respective excessive pressures.
Cooling capacity refers to the value with cooling inflow water at a temperature of 7℃, temperature difference between inlet and outlet at 5℃, and temperature of inlet air at DB=27℃, WB=19.5℃.
Heating capacity refers to the value of heating inflow water at a temperature of 60℃, temperature difference between inlet and outlet at 5℃, temperature of inlet air at DB=21℃, and the same water flow as cooling case.
Noise values are obtained inside the anechoic room at a distance of 1.5m in the front and at the bottom of machine sets.
Standard power is 50Hz. 60Hz power is optional. Please inform us when ordering if needed.
Standard case structure is left tube connected. Right tube connection is optional. Please inform us when ordering if needed.
