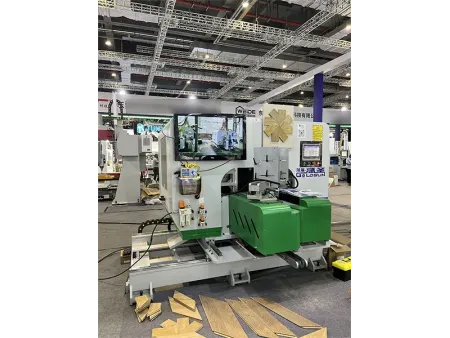

Wood profiling machine for manufacturing chevron parquet flooring (inclined parquet)

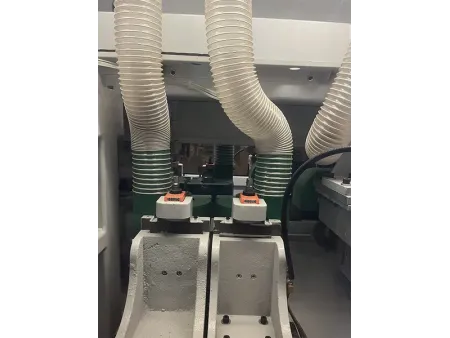

Perfect for chevron parquet flooring production, this double-end tenoner profiling machine offers precise and efficient processing of various angled wood pieces. With advanced features like servo motor-driven automatic feeding and a fully enclosed dust protection system, this machine ensures both safety and high production standards. Multiple processes, including sawing, tenoning, and profiling, can be completed in one pass, making it ideal for high-end flooring manufacturing.

Features
  • Adjustable angle for all cutting axes on both ends, allowing for precise beveling, grooving, and tenoning.
  • Equipped with a jump saw function, reducing burrs and minimizing edge damage during cutting.
  • Optional scrap cutting tools for efficient removal of board waste and trimming offcuts.
  • High-precision linear guide rails ensure smooth, accurate movement with excellent wear resistance, maintaining consistent width during wood processing.

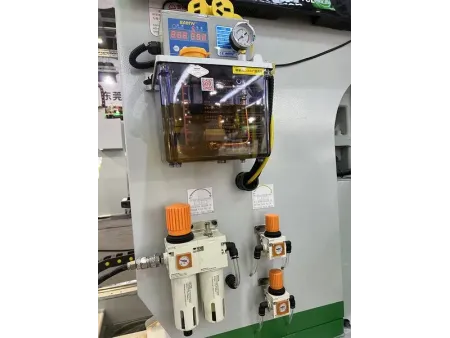

  • A lubrication system for the guide rails reduces friction, extending the life of the tenoner’s moving parts.
  • Rolling feed conveyor equipped with bearing supports ensures stable, low-noise, and accurate positioning during operation, enhancing reliability and reducing wear.
Specifications
Processing size Length: 250-900mm (90°), 320mm-1000mm (45°)
Thickness: 10-30mm
Processing angle ±45° (adjustable) Length error within 0.1 mm after processing, a combination of 8 panels with an error of approximately 0.05mm only
Milling cutter shaft diameter Ø40mm
Production speed Approximately 8-10pcs/min
Sawing power 4×3.7kW 10000r/min
Milling power 4×5.5kW 8000r/min
Feeding motor power (servo) 4×0.75kW
Pre-feeding motor power (servo) 2×0.4kW
Angle adjustment motor power (servo) 2×0.85kW
Width adjustment motor power (servo) 1×0.85kW

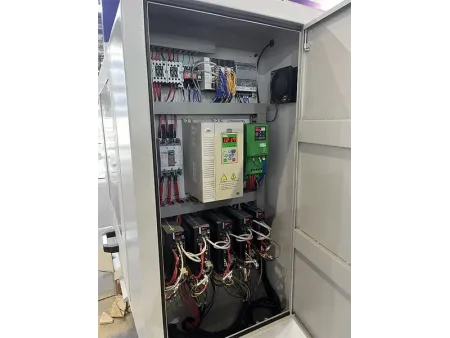

Operation system Inovance PLC Bus Servo
Dimensions (L×W×H) 2700×2200×2200mm
