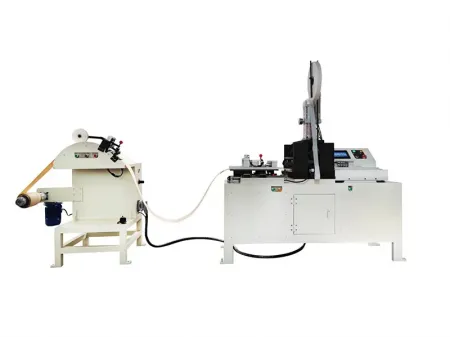

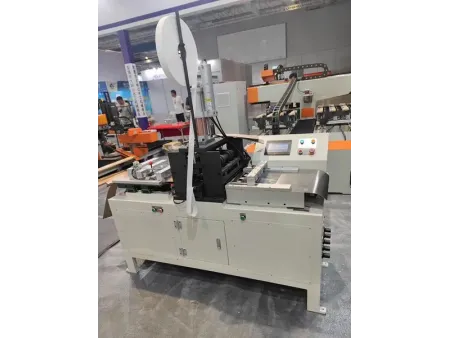

Veneer Finger Jointing Machine
Request a Quote
Veneer splicing machine for finger joint cutting and joining of two veneer strips
The veneer finger jointing machine main function to precisely cutting and joining veneer strips using finger joints, creating strong, seamless connections. It ensures high-quality, smooth finishes ideal for woodworking applications requiring precision and durability.

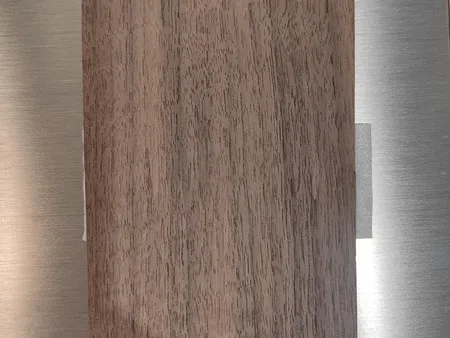

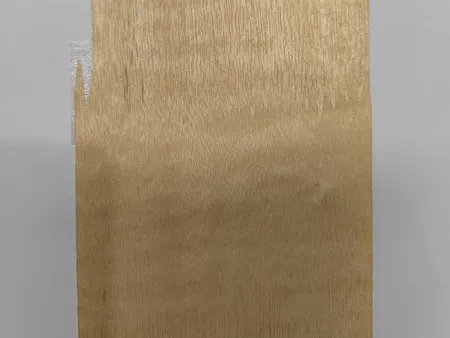

Finger joint veneer splice result

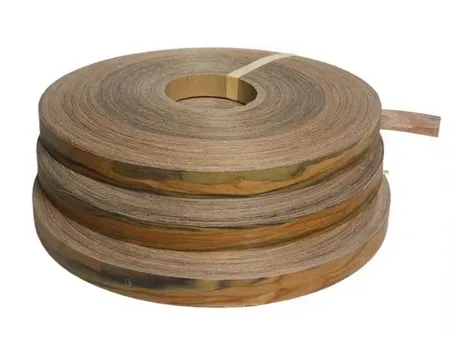

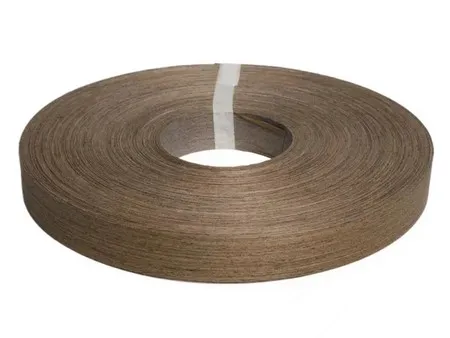

Rolls of veneer material used for finger joint splicing
Specifications
| Veneer joining method | Finger jointing |
| Veneer thickness | 0.3-0.6mm |
| Veneer width | 45-300mm |
| Veneer length | No limit |
| Splicing speed | 5-8 joints per minute |
| Working table height | 900mm |
| Splicing temperature | 120 to 240℃ |
| Compressed air required | 5kg/cm |
| Input voltage | 220V |
| Total power | 3.5kW |
| Dimensions | 2400×1350×1800mm |
| Total weight | 1100kg |
