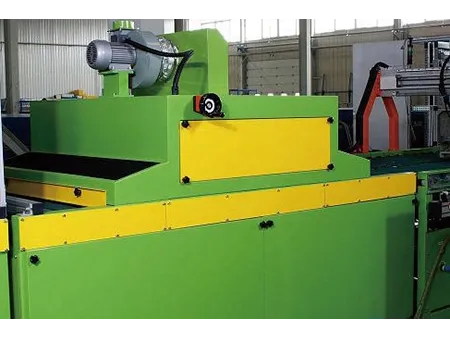

Five-Lamp UV Dryer
Request a Quote
UV curing system for drying UV paint on flat surfaces
This coating dryer was developed on the same basis as a coating dryer with 3 UV drying lamps, with two additional UV lamps installed for workpiece drying. This equipment will instantly dry all 5 sides of a UV paint coated workpiece, and ensure the surface of each workpiece is glossier.
Working principle
The UV paint coated product is transferred with the use of a conveyor belt, and passes through a dryer light box equipped with UV lamps, where the UV paint will chemically react to the light, and cross link to form a film. By doing so, the product surface becomes dry.
Specifications
| Effective processing thickness | 2-80mm |
| Effective processing width | 620/920/1320mm(optional) |
| Minimum processing length | 300mm |
| Transport speed | 0-20m/min |
| Transport power | 0.75kW |
| Power supply | 380V/50Hz |
| Paint type | UV |
Details
- The irradiation density of the UV lamps is adjustable and equipped with a high-strength capacitor and transformer, both of which enhance the UV lamp stability.
- The reflector panel on the lamps' outer cover allows for the UV light reflectivity to reach 99%, thus reducing energy consumption.
- The light box inlet and outlet are equipped with light screens in order to effectively prevent UV light leaks.
- The light box is equipped with an air-cooling system and a temperature controller to precisely control its internal temperature, thereby extending the lamp service life.
- Depending on the type, the panels can be transported using a chain, stainless steel, or roller conveyor.
Optional models
| Model | Effective processing width (mm) | Lamp power (kw) | Fan power (kw) | Outline size (LWH) |
| 620 | 5.6*3, 3.0*2 | 0.75*2 | 2500x1700x1800 | |
| 920 | 8.0*3, 3.0*2 | 1.5*2 | 2500x2000x1800 | |
| 1320 | 9.6*3, 5.6*2 | 2.2*2 | 2500x2400x1800 |
