Request a Quote
Recommended application

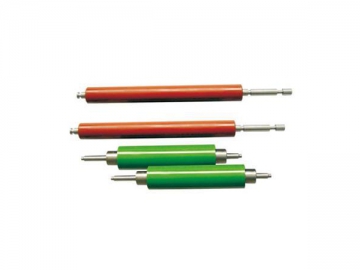

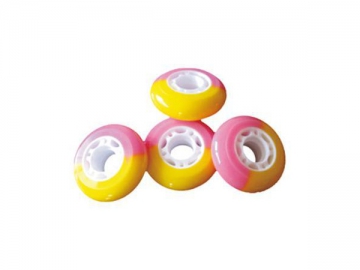

PU Equipment for hot cast polyurethane elastomer is used for casting PU elastomer products that use MOCA or BDO as the chain extender, such as CPU wheels, casters, rubber rolls, screen mesh, sealing ring, buffers and more.

Application
Technical parameters
Injection flow rate 0.1-60kg/min
Mix ratio 100:6-100:18 (ADJ)
Injection time 0.5~99.99 S (Accurate to 0.01 S)
Repeated injection accuracy ±1%
Cleaning tank 20L 304# stainless steel
Volume of tank 30L-500L
Heating temperature Room temperature to 200 ℃
Input voltage three-phase five-wire, 380V
Weight 1500-3000Kg
Detailed drawing

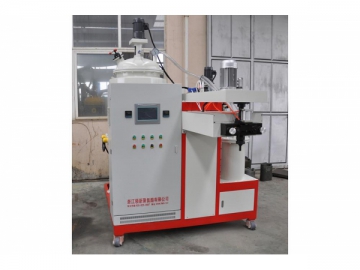

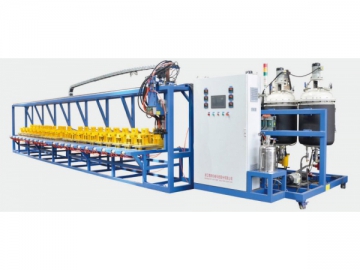

  • PU Equipment for Hot Cast Polyurethane Elastomer

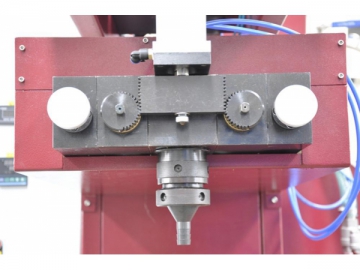

  • Korea SPU high efficiency mixing head

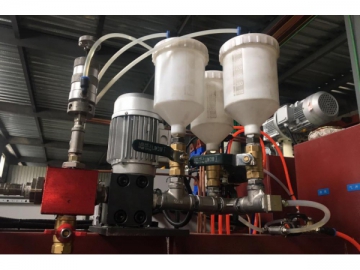

  • Colorant additive system

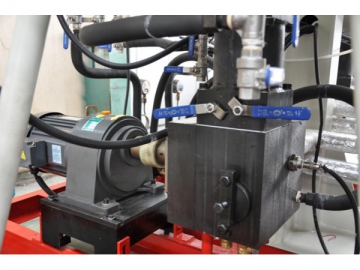

  • Metering pump system

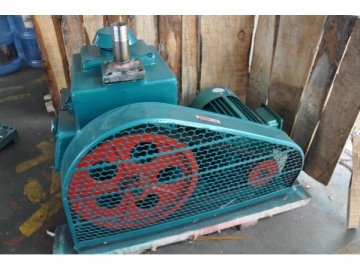

  • Vacuum pump

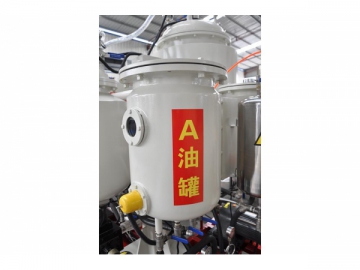

  • Raw material tank
  • Heated tank

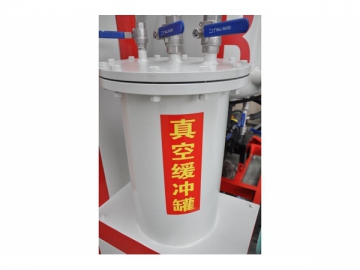

  • Vacuum buffer tank
  • Cleaning fluid tank

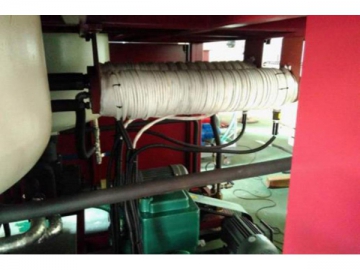

  • Electromagnetic heating winding
  • Taiwan AirTAC cylinder

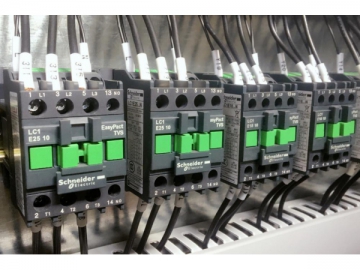

  • Schneider AC contactor

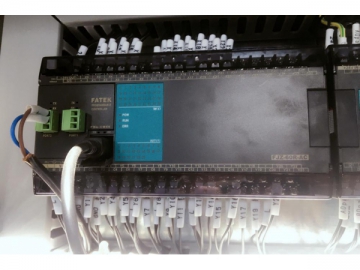

  • Fatek PLC controlling system
Features

1. The PLC and touch screen control system is smart and simple. Temperature and flow rate are adjustable.
2. Using electromagnetic heating and heat-conduction oil circulation system to heat the raw materials results in a high efficiency, fast heating and no pollution of the heat conduction oil.
3. The feeding tube uses double wall metal pipe. The metering pump is wrapped in an insulated box without dead angles, ensuring raw materials remain at a constant temperature from the tank, all the way to the mixing head.
4. The mixing head uses the latest technology, and the conical mixing blade will not produce any bubbles when the polyhydric alcohol and polyisocyanate materials are stirred. The machine is also equipped with a vacuum device, which vacuums the raw material and eliminates any bubbles.
5. The equipment is equipped with a cleaning system, controlled by a single button.
6. The tank uses a 3 layer design with 2 inner layers. The innermost layer is circulated with heat conduction oil, while the outer layer is filled with PU rigid foam insulation.
7. A color paste control system can be added to the equipment. The color paste can be directly entered into the mixing device, and the color can be switched at any time. The mixing is uniform and accurate.

Model

This is product model table for customers to choose from. If you do not find what you need, please contact Lingxin directly, and we will customize polyurethane equipment to meet your needs.

LXCPU-2-08GY-0S PU Equipment for Hot Cast Polyurethane Elastomer
Applicable product Injection flow rate PLC system Prepolymer metering pump MOCA chain extender metering pump Volume of tank Size
Hot Cast PU Elastomer 250-800g/min Fatek JR-6 JR-1.2 150/30L 2100x1500x1900mm

LXCPU-2-3GY-0S PU Equipment for Hot Cast Polyurethane Elastomer
Applicable product Injection flow rate PLC system Prepolymer metering pump MOCA chain extender metering pump Volume of tank Size
Hot Cast PU Elastome 1-3.5kg/min Fatek JR-20 JR-2.4 150/30L 2100x1700x1900mm

LXCPU-2-5GY-0S PU Equipment for Hot Cast Polyurethane Elastomer
Applicable product Injection flow rate PLC system Prepolymer metering pump MOCA chain extender metering pump Volume of tank Size
Hot Cast PU Elastome 2-5kg/min Fatek JR-50 JR-6 250/80L 2300x1800x2100mm

LXCPU-2-15GY-0S PU Equipment for Hot Cast Polyurethane Elastomer
pplicable product Injection flow rate PLC system Prepolymer metering pump MOCA chain extender metering pump Volume of tank Size
Hot Cast PU Elastome 5-15kg/min Fatek JR-100 JR-15 300/80L 2300x2100x2100mm

LXCPU-2-30GY-0S PU Equipment for Hot Cast Polyurethane Elastomer
Applicable product Injection flow rate PLC system Prepolymer metering pump MOCA chain extender metering pump Volume of tank Size
Hot Cast PU Elastome 10-60kg/min Fatek JR-200 JR-20 500/80L 2700x2500x2300mm
