Polyurethane Vacuum Insulation Panel (PU-VIPs)
Although vacuum insulation panel has a good insulating performance and barrier property, we further have developed robust, durable polyurethane vacuum insulation panel (PU-VIP) for collision avoidance upgrading from vacuum insulation panel based on fiberglass core material combined with polyurethane foam (PU).
Vacuum insulation panel based on fiberglass core material, a new energy-efficient insulation material following the adiabatic principle for insulation, is a special composite made of core materials and protective layers. It is integrated with the superiority of vacuum insulation and micro-pore heat insulation, effectively stopping convective heat transfer to perfect thermal insulation.
Integrated with polyurethane foam, polyurethane vacuum insulation panel (PU-VIP) has an attractive design and perfect insulating performance. Compared with vacuum insulation panel based on fiberglass core material, PU-VIP with the ease of installation and use has a smoother surface and edge for the better protection of vacuum insulation panel based on fiberglass core material.
With an excellent thermal conductivity of lower than 0.0045w/m.k, it can be widely applied to thermal insulation products such as refrigerators, freezers, refrigerated trucks, cold storages, insulated shipping container, ice storage tanks, etc.
What the Size Range of Polyurethane Vacuum Insulation Panel (PU-VIPs)
- Detachable and can be folded to a quarter of the original height;
- Vacuum insulation panel should be stored separately;
- Custom color and open molding;
- Anti-Skid bottom;
- Energy-saving and environment-friendly;
- Cost-effective: composite panel can be changed by single;
Application Examples

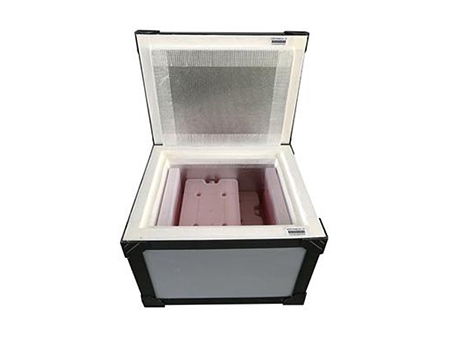

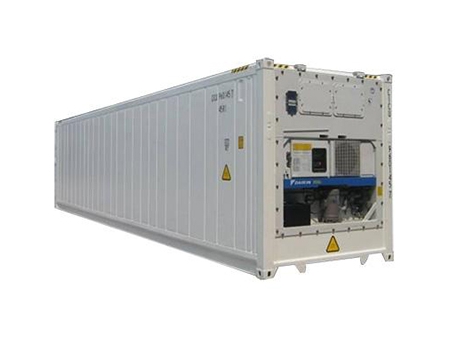

Vacuum Insulation Panel for Temperature Controlled PackagingVacuum Insulation Panel for Refrigeration AppliancesVacuum Insulation Panel for Insulated Shipping Container
