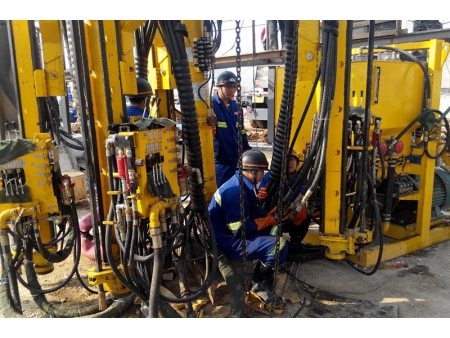

Shaft Drilling Jumbo, Hydraulic Shaft Jumbo, YSJZ (Vertical Shaft Drills) Manufacturer

Shaft Drilling Jumbo, Hydraulic Shaft Jumbo, YSJZ (Vertical Shaft Drills)

Request a Quote

View All: http://htdrillingmachine.com/3-1-shaft-drilling-jumbo.html

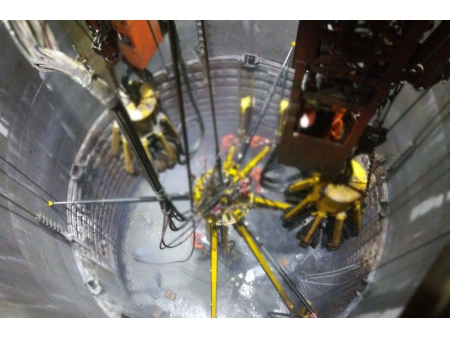

YSJZ shaft drilling jumbo is a type of rock drilling machinery specially designed for vertical shaft construction in iron ore and non-ferrous metal mines. The shaft jumbo is a great alternative to be used in mining and underground construction projects where other drilling methods couldn't be adopted due to their technical or economic limits. The operations of this hydraulic drilling equipment are driven by two 90kW motors, including rotation, drilling, feed.
Huatai offers 3 types of hydraulic shaft jumbos, which can accommodate all types of vertical shaft construction. In addition, the vertical shaft drill can be designed in accordance with shaft specifications on each project.

Features

Low consumption: The shaft drilling jumbo is designed with electro-hydraulic system. The power consumption of the hydraulic system is only 1/3 that of the pneumatic system.
High drilling speed: The longhole drilling speed of hydraulic shaft jumbos is more than twice as fast as pneumatic rock drilling equipment when working on the same type of rock, with same hole diameter. The drilling speed can reach 0.8-1.5 m/min.
Reduced cost for drilling tools: Optimized drilling parameters can be made according to the rock type. A dual damper mechanism ensures increased impact energy transfer efficiency. This results in high drilling performance. Therefore, the cost reduction of drilling tools such as bits and rods can reach 15-20%.
Cost effectiveness: Since the hydraulic pressure is approx. 10 times higher than the pneumatic pressure, under the same impact power the piston of the hydraulic drilling jumbo features a small force area. The area of impact piston is nearly the same with the shank area. The hydraulic shaft drill features low stress transfer loss, long service life, and low failure rate, resulting in cost reduction by 30%.
Improved working environment: No exhaust gases are produced during hydraulic powered rock drilling, causing no pollution to the working environment. Requiring no exhaust, the noise level can be reduced by 5-10 decibels comparing with pneumatic powered rock drilling.
Improved construction quality: High accuracy of drilling depth and spacing can be provided by the hydraulic drilling equipment, contributing to improving the shaft construction quality.

Technical Specifications

				YSJZ3.6	YSJZ4.8		YSJZ6.12
General	Boom		pcs	3	4		6
	Blast hole diameter		mm	⌀ 1650-6500	⌀ 1650-9000		⌀ 1650-12000
	Dimensions (folded)		mm	⌀ 1700x7300	⌀ 2100x8000		⌀ 2250x8200
	Brace range		mm	Designed in accordance with customer needs
	Swing angle of boom		°	130	120		120
	Total Weight		kg	6000	8200		12500
	Pump station weight		kg	2000	2600		4400
	Hole diameter		mm	⌀ 45-54
	Hole depth		mm	4200	5100		5100
	Rod type			B32
Feed	Type			Guide rail type
	Control method			Hydraulic cylinder - steel wire rope
	Total length		mm	5878	6774		6774
	Feed speed		mm/min	1000-2000
Hydraulic pump station	Working pressure		MPa	15	15		15
	Flow		L/min	350	220		350X2
	Motor	Rated power	kW	90	55×2		90X2
		Rated voltage	V	380/660/1140V for shafts with depths of 0-500 m; 660/1140V for shafts with depths of 500-1000 m; Only 1140V for shafts with depths higher than 1000m;
		Rated speed	r/min	1480
	LxWxH		m	1.4x1.46x2.1		1.76x1.62x2.1	1.8x1.65x2.5
	Pump type			Variable displacement piston pump
	Cooling type			Air cooling (standard) / water cooling (optional)
	Oil tank capacity		L	770	730		1350
Drifter	Quantity		pcs	3	4		6
	Type			HYD200
	Impact energy		J	200
	Impact frequency		Hz	≥33
	Impact pressure		MPa	13-14
Pump station for overhaul	Working pressure		MPa	15	15		15
	Flow		L/min	45
