The GYSJZ shaft drilling jumbo is a specialized, high-performance drilling machine developed to meet the demands of deep, hard-rock vertical shaft excavation. The drilling machinery is powered by a robust 132kW motor and equipped with three heavy-duty hydraulic drifters, enabling it to handle drilling diameters from 4 to 6 meters. Its lightweight frame (weighing less than 7 tons) eliminates the need for oversized hoisting equipment, offering a cost-effective solution for your drilling needs.

Features
  • High power, high speed The drilling machine is equipped with the RC1200 hydraulic drifter, achieves drilling speeds 1.2 to 1.5 times faster than other models on the market. This allows for rapid and efficient drilling in challenging rock conditions, ensuring timely project completion.
  • Customizable for enhanced efficiency The adaptable hole diameters (⌀45, ⌀51, ⌀54) allow operators to optimize drill hole size and spacing based on project needs. The use of larger hole sizes and strategic spacing can reduce the number of drilling holes required, boosting both productivity and blasting effectiveness.
  • Safety-integrated design The shaft drilling jumbo is equipped with emergency stop buttons on both the control panel and work surface, allowing for immediate shutdown in the event of equipment malfunctions. This protects vital components like pumps and minimizes oil leakage, helping to avoid unnecessary downtime and maintenance costs, while ensuring the continued optimal performance of the pumps.
Technical Specifications
Specifications Unit GYSJZ3.6 GYSJZ4.8 GYSJZ6.12 GYSJZ4.10
Vertical shaft diameter m ⌀ 4-6 ⌀ 6-9 ⌀ 9-12 ⌀ 9-11.5
Number of boom pcs 3 4 6 4 (2 Fixation 2 Expansion)
Drilling range m ⌀ 1.65-6.9 ⌀ 1.650-9 ⌀ 1.650-12 ⌀ 1.650~Fixation10.8 (Expansion 124)
Retracted dimension (outside dia.*height) m ⌀ 2x7.2 ⌀ 2.2x8.3 ⌀ 2.3x8.3 ⌀ 2.35x8.7
Outer circle diameter of supporting boom Optional Optional Optional Optional
Moving boom swing ° ±65 ±60 ±60 ±60
Weight of drilling rig kg 6800 9000 13000 10000
Weight of pump station kg 480 480 480
2000 /2550 1700 /2250 2000 /2550 5000/6500
Dimension of pump station (L*W*H) mm 1250x814x1738 1250x814x1738 1250x814x1738 2250x1650x2500
mm 1700x960x2450 1440x1010x2200 1700x960x2450
Hole size mm ⌀ 45-54 ⌀ 45-54 ⌀ 45-54 ⌀ 45-89
Hole depth mm 4200 5190 5190 5400
Drilling speed mm/min 2500-3000n 2500-3000 2500-3000 2500-3000
Drill tools R38/R32
⌀ 45/48/51/54Bit
R38/R32
⌀ 45/51/54Bit
R38/R32
⌀ 45/51/54Bit
R38/R32
⌀ 45/51/54Bit

RC1200 Hydraulic drifter Specification Rotation Features
Length (without shank) 673 mm Motor type OMS125 OMS160 Percussion power 14 kW
Width 325 mm Torque (210bar) 490 N.m 610 N.m Percussion frequency 100 Hz
Apothem (vertical) 90 mm Speed (70bar) 330 rpm 270 rpm Shank T38 R32
Apothem (horizontal) 152 mm Flow 60 L/min 60 L/min Hole size 43-76 mm
Weight 130 kg Flushing water pressure < 20bar Water consumption 40-80 L/min
Case Study

The GYSJZ6.12S is designed for large-scale projects, including the 16-meter diameter shaft for Shaanxi Coal and Chemical Industry Group, Asia’s largest project of its kind.

This dual-drill system uses two GYSJZ6.12 hydraulic shaft drills connected by linking arms. Powered by four 132kW motors and featuring twelve RC1200 drifters, it can handle shaft diameters from 12 to 16 meters efficiently.

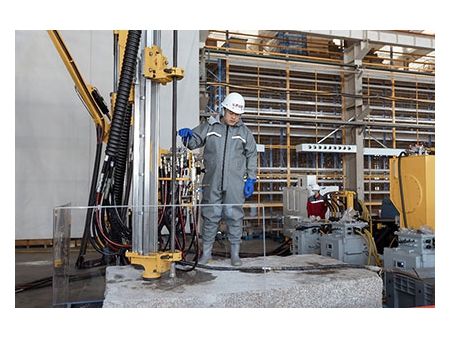

The RC1200 drifter, developed by Huatai, is built for efficiency and low energy use. It’s known for its reliability and high performance in mining and tunnel construction, where it adapts well to different rock conditions and job demands.
